AVMATRIX PVS0613U Portable 6CH Streaming Switcher
Inclusive of all taxes
View Shipping Details
Know more about this product
Why should I buy this?
Discover this product's exceptional qualities before buying.
Compare with other product
Comparing this product to any others that are comparable.
Get most popular reviews
Find product reviews for a better experience.
Where I can use this?
Understand the usability of the product.
| Unit | NOS |
| Video Inputs | 2 x HDMI 4 x BNC (3G-SDI) |
| Input Video Format | HDMI (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 23.98/24/25/29.97/30/50/59.94/60 fps 576p 50 fps 576i / 625 lines 50 fps SDI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 720p 23.98/24/25/29.97/30/50/59.94/60 fps |
| Audio Inputs | 1 x 1/8" / 3.5 mm TRS Stereo 1 x 2RCA Analog |
| Video Outputs | 1 x HDMI (Program) 2 x BNC (3G-SDI) (Program) 1 x USB-C |
| Output Video Format | HDMI / SDI 1080p at 24/25/30/50/60 fps 1080i 50/60 fps USB-C WUXGA (1920 x 1200) 1080p WUXGA+ (1680 x 1050) UXGA (1600 x 1200) WXGA+ (1440 x 900) FWXGA (1366 x 768) SXGA (1280 x 1024) 1280 x 960 WXGA (1280 x 800) 1280 x 720 (Non-Standard WXGA) XGA (1024 x 768) 1024 x 576 960 x 540 856 x 480 SVGA (800 x 600) 576i / 625 lines 720 x 480 VGA (640 x 480) 640 x 360 |
| Audio Outputs | 1 x 1/8" / 3.5 mm TS Stereo 1 x 2RCA Analog |
| Multiview Output | 6-Way Multiview viaHDMI, SDI |
| Other I/O | 1 x BNC Output 1 x DE-15/DB-15 Tally 1 x RJ45 LAN |
AVMATRIX PVS0613U
The Portable 6-Ch SDI/HDMI Multi-Format Streaming Switcher with 13.3" Display from AVMATRIX supports a mix of different resolutions and frame rates up to 1080p60 over two HDMI and four SDI auto-detecting inputs. The switcher provides a flexible solution for sports, events, education, and various other live production applications. All the signals can be scaled to 1080p60 or 1080i60 on PGM output, and you can switch between the sources and apply audio mixing and transition effects.

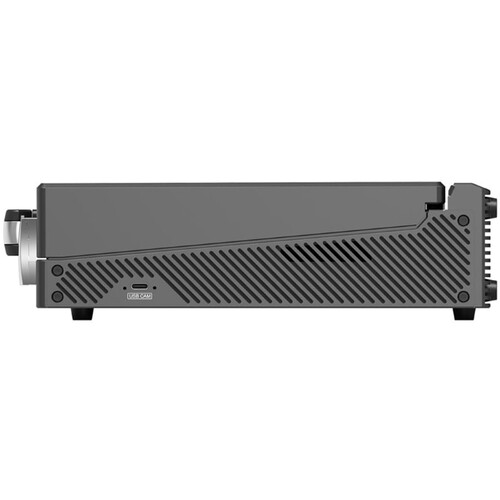

Featuring a USB-C 3.0 output, the switcher can also be connected to your Windows/Mac/Linux computer as if it was a webcam. You'll be able to stream connected video and audio signals to UVC/UAC compatible platforms such as OBS Studio, Skype, YouTube Live, Facebook Live, Zoom, and Teams.

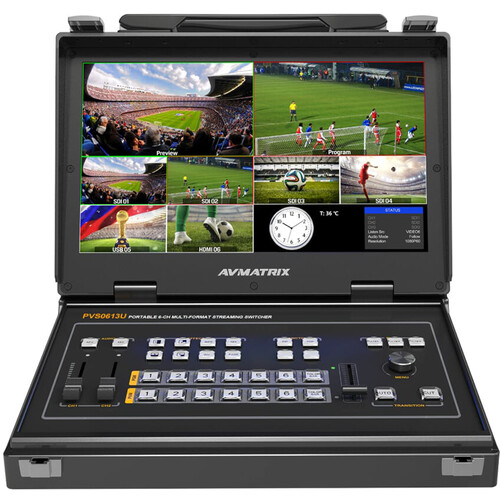

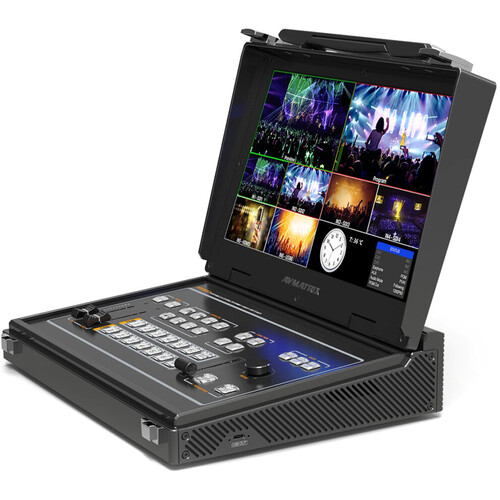

In an all-in-one portable design, the switcher is housed in a robust metal case and has a 13.3" Full HD IPS display and familiar switching controls, including a T-bar. The display allows for multiview monitoring of six sources along with PVW and PGM with an audio meter. A clock and a menu list are also displayed in the bottom right corner.
Key Features
Multiview output fixed at 1080p60; PGM scaled output selectable via a knob
Two HDMI and four SDI inputs
One HDMI and two SDI PGM outputs
One HDMI and one SDI multiview outputs
SDI AUX output can be selected as PGM or PVW
UVC livestreaming via USB-C 3.0 connection
One 3.5mm stereo audio input; one RCA (L/R) input
One 3.5mm stereo audio output; one RCA (L/R) output
RJ45 LAN interface (for updates; synchronize local time)
GPIO tally
T-Bar/Auto/Cut transitions
Mix/Fade/Wipe transition effects
PiP mode with adjustable size and position
FTB (fade to black) emergency button
- Mix 6 x Input Formats up to 1080p60
- 1080p60 and 1080i60 Scaled PGM Out
- 1 x HDMI and 2 x SDI PGM Outputs
- 1 x SDI AUX Output (PGM or PVW)
- RCA (L/R) Analog I/O
- 2 x HDMI and 4 x SDI Auto-Detect Inputs
- USB-C 3.0 Livestreaming Output
- 1 x HDMI and 1 x SDI Multiview Outputs
