Atomos Shogun 7 Classic Overview

The 7" Shogun HDR Classic Cinema Monitor-Recorder-Switcher, one of the latest workhorses in the Atomos line of Shogun onboard camera video monitor-recorders, provides monitoring, recording, and switching in a single, compact tool. The ultra-bright 3000 cd/m² display can input up to DCI/UHD 4K60 video and features HDMI and SDI input and output, so it's perfect for cinema capture, live events, and broadcast productions.

Ultrabright Screen

• 7.2" large 1920 x 1200 resolution display
• 1,000,000:1 contrast ratio
• 3000 cd/m² brightness
• Play back your recently captured shots on the same pristine screen for reviewing

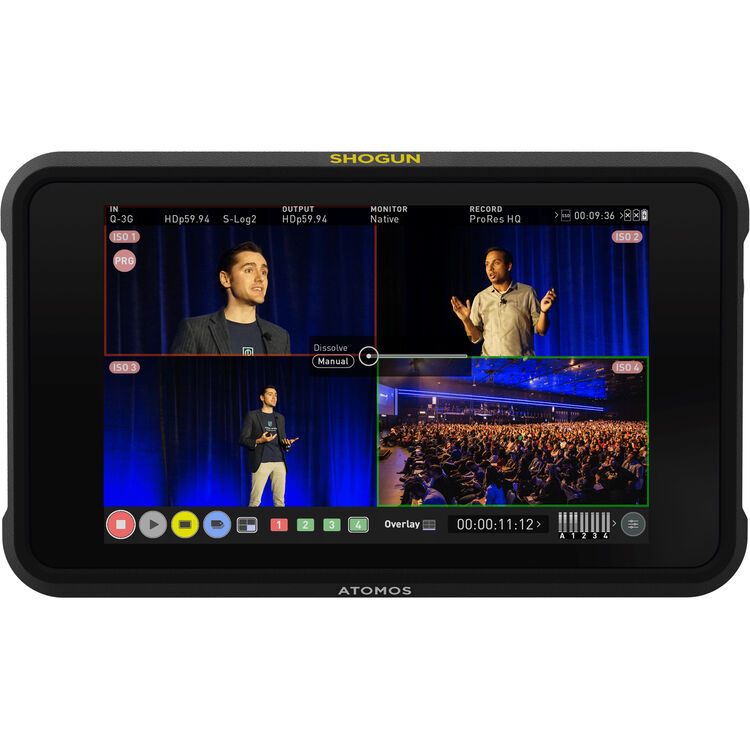

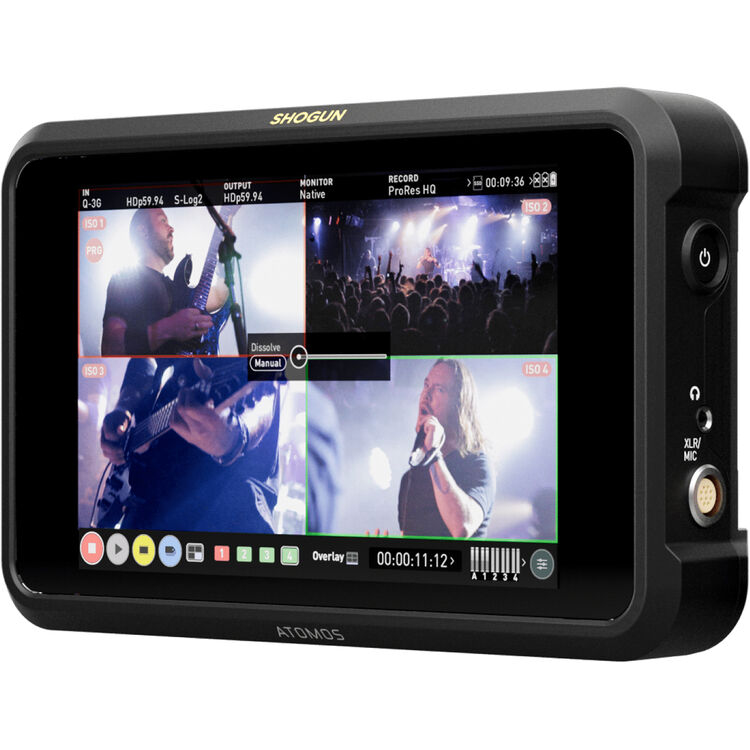

Multicamera Switching

• Four SDI inputs transform the Shogun Classic into a portable, quad-view live switcher and recorder on your multicamera shoots
• Record a fifth program channel of your switched feed and display the resulting mixed output (via HDMI or SDI) live
• You can even output the switched feed for live streaming
• Switching is completely asynchronous, eliminating the need for expensive locked sources and allowing the use of more affordable cameras

HDR I/O and Color Management

• Deliver content via live HDMI out, in real time, from any HDR camera to a compatible HDR TV or monitor
• Monitor every pixel of SDR or HDR as it's captured and view it in 10-bit HDR
• Add the monitor to a high-end ARRI, RED, or Sony VENICE, and you'll get accurate HDR monitoring and all the tools you need to get your job done

Recording

• Use with your DSLR or mirrorless camera via HDMI to record up to 4K60 Apple ProRes and AVID DNx codecs for easy editing and archival quality
• Record up to four 1080p60 streams simultaneously as separate ISOs while cueing and switching in real time with a simple touch of the screen

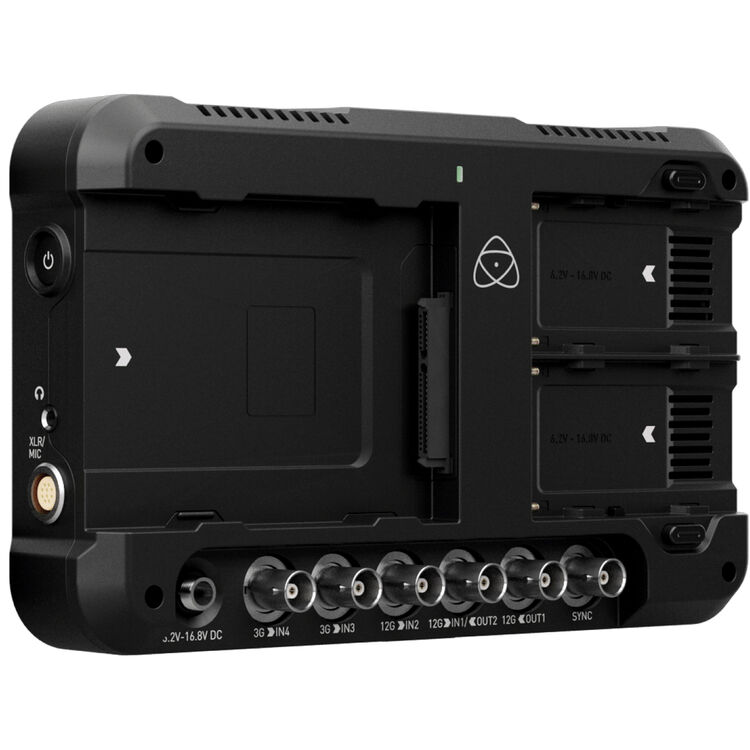

Additional Features

• LTC input via BNC
• 2-pin XLR audio input for 2-channel input and output
• Dual L-series battery plates
• 1/4"-20 mounting thread
• Fan and heat sink cooling
• Remote start/stop trigger via 2.5mm LANC jack
• 3.5mm headphone output
• Includes Master Caddy II; supports Master Caddy II and SSDmini

Monitoring Tools

The 7" Shogun Classic features numerous built-in monitoring tools, including:

• Custom 3D LUTs
• False color
• Focus peaking
• HDR exposure
• Pixel magnification (1:1, 2:1)
• RGB parade
• Vectorscope
• Frame guides
• Zebra
• Waveform
• Safe areas
• Markers
• Vertical flip
• Atomos Calibrator with Display Pro HL and Display Plus HL
• Downscaling to HD and crop
• Interlaced and PSF to progressive
• Anamorphic de-squeeze
