AVMATRIX FE1121 Overview

The 12G-SDI Fiber Optic Extender from AV Matrix extends HD/SD signals up to 12G-SDI using your fiber optic cable network. This transmitter and receiver set has a range of up to 6.2 miles and features dual 12G-SDI outputs on the receiver. Supporting all SDI video resolutions up to 4K60 plus embedded audio and metadata, this compact set is compatible with single-mode LC simplex fiber cable.

Features include SDI equalization, hot-pluggable SFP modules with LC connectors, up to 32-channel embedded audio support, and two included USB power supplies.

Features

Extends HD/SD signals up to 12G-SDI, 4K60 over single-mode LC fiber optic cable

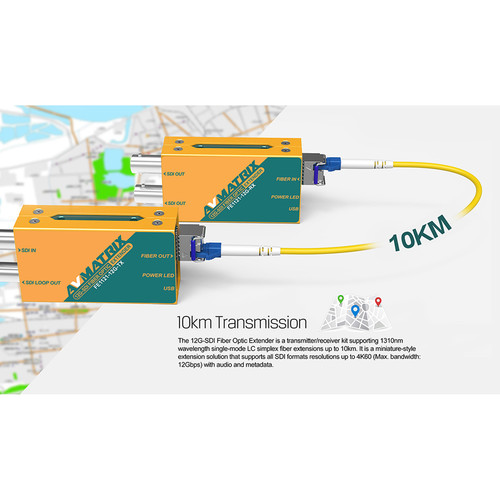

Supports a range of up to 6.2 miles

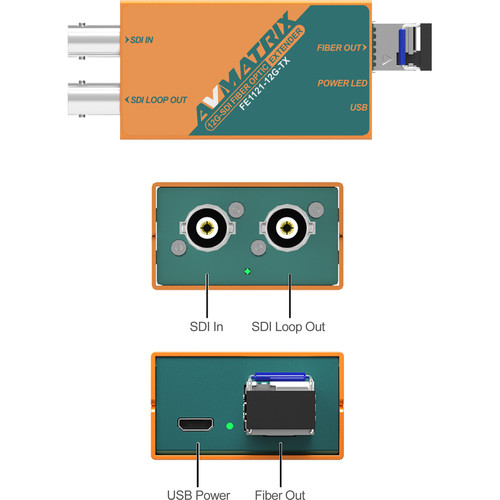

SDI input and loop out, LC single-mode fiber output on transmitter

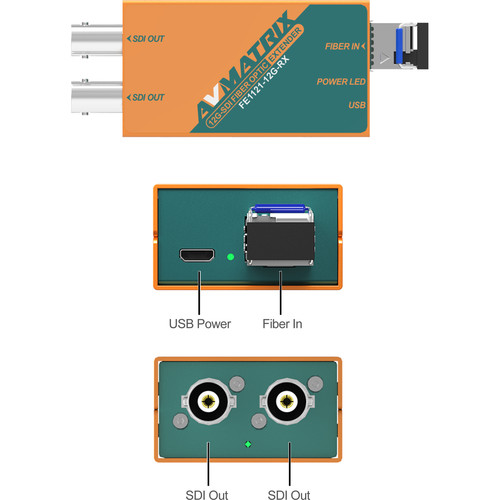

LC single-mode fiber input, dual SDI outputs on receiver

Supports metadata and 32/16-channel embedded audio

Signal re-clocking

Compact, USB-powered form
