AVMATRIX HVS0401E-Micro 4-CH HDMI/ DP Video Switcher
Inclusive of all taxes
View Shipping Details
Know more about this product
Why should I buy this?
Discover this product's exceptional qualities before buying.
Compare with other product
Comparing this product to any others that are comparable.
Get most popular reviews
Find product reviews for a better experience.
Where I can use this?
Understand the usability of the product.
| Switching Type | Pushbutton, Software, T-Bar |
| Processing Resolution | 1080p at 23.98/24/25/29.97/30/50/59.94/60 |
| Color Processing | RGB YCbCr |
| Video Inputs | 4 x HDMI Female 1 x DisplayPort Female |
| Input Video Format | HDMI 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 24/25/30/50/59.94/60 fps 576p at 50 fps 576i / 625 lines at 50 fps 480p at 59.94/60 fps 480i / 525 lines at 59.94/60 fps |
| Audio Inputs | 2 x 1/8" / 3.5 mm TRS Stereo Analog Female 1 x 2RCA Stereo Analog |
| Input Audio Format | Analog |
| Video Outputs | 2 x HDMI Female (Program) 1 x HDMI Female (Monitor) 1 x USB-C (USB Video) Female |

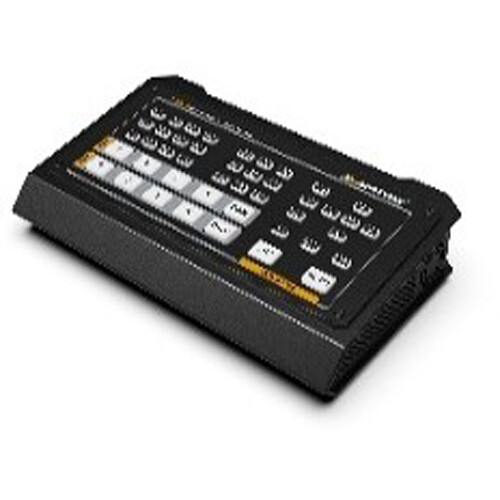

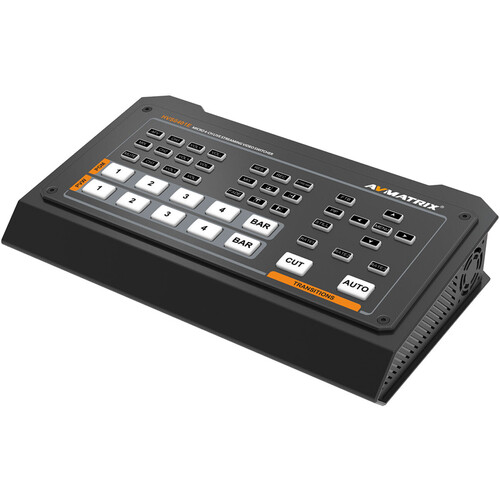

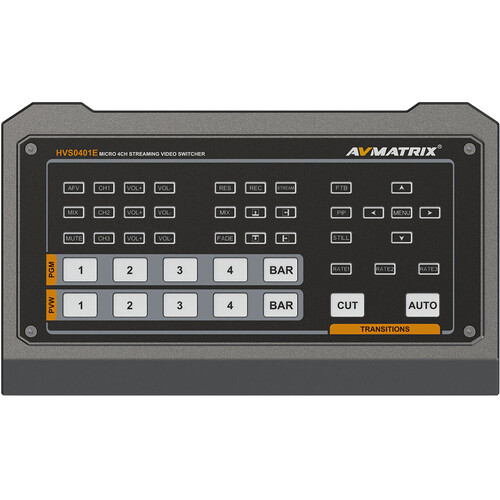

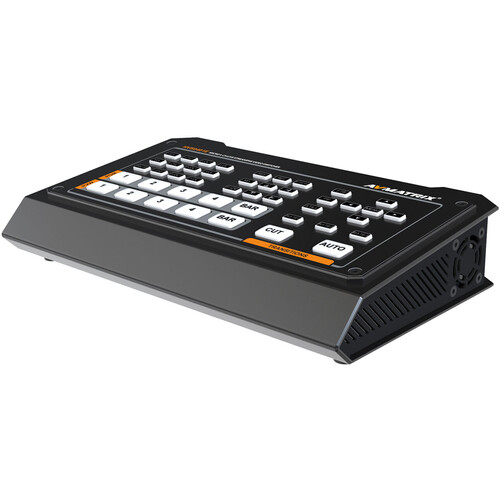

AVMATRIX Micro 4
Switch up to one DisplayPort and four HDMI video inputs while monitoring the program feed with the Micro 4-Channel HDMI & DP Video Switcher from AVMATRIX. This compact switcher offers RTMP streaming via its LAN port, supports up to 1080p60 video input and output with embedded audio, and offers audio mixing using the two analog stereo 3.5mm mic/line inputs and output along with the embedded audio. Switcher control options include push buttons, a T-bar, and IP control via the LAN port.
Live Stream via Ethernet
- Supports IP streaming via the LAN port and RTMP protocols
- Compatible with platforms like YouTube, Skype, Facebook, and Twitch
USB Capture
- Built-in USB-C port can be used to connect the switcher to a computer for USB capture using software like OBS, PotPlayer, or vMix.
- The USB-A port can be used to record the program feed at resolutions up to 1080p60 and bitrates up to 32Mb/s.
- Encodes using H.264/H.265 with MP4/TS file format support.
Web Page Control
Can be easily controlled via an IP address with settings clearly viewed and controlled on the page.

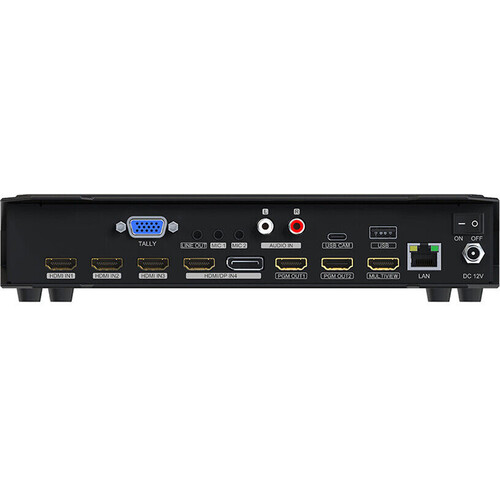

Multiple Interfaces
Multiple interfaces include HDMI and DisplayPort inputs, Program outputs, multiview output, audio inputs, streaming, and recording ports.
- Compact 4-Channel Video Switcher
- 1 x HDMI Multiview & 2 x HDMI PGM Out
- 1 x USB-A & 1 x USB-C Output
- T-Bar, Auto & Cut Transitions
- Adjustable PiP Size & Positioning
- 1 x DisplayPort & 4 x HDMI Inputs
- RTMP Streaming via RJ45 LAN Port
- Supports up to 1080p60 Video In/Out
