AVMATRIX Mini SC1221 HDMI to SDI Mini Converter
Inclusive of all taxes
View Shipping Details
Know more about this product
Why should I buy this?
Discover this product's exceptional qualities before buying.
Compare with other product
Comparing this product to any others that are comparable.
Get most popular reviews
Find product reviews for a better experience.
Where I can use this?
Understand the usability of the product.
| Unit | NOS |
| Input | 1 x HDMI type-A |
| Output | 2 x 3G/HD/SD-SDI |
| HDMI Format Support | 1080p at 50/59.94/60 fps 1080p at 23.98/24/25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 24/25/30/59.94/60 fps 576i at 50 fps 480i at 60 fps |
| HDMI Color Space | RGB 4:4:4, YUV 4:4:4, YUV 4:2:2 |
| SDI Format Support | 1080p at 50/59.94/60 fps 1080psf at 23.98/24/25/29.97/30 fps 1080p at 23.98/24/25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 24/25/30/50/59.94/60 fps 625i at 50 fps 525i at 59.94 fps |
| SDI Compliance | SMPTE 292M/SMPTE 259M/SMPTE 424M |
| SDI Color Space | YUV 4:2:2 |
| Power Port | 1 x micro-USB |
AVMATRIX SC1221

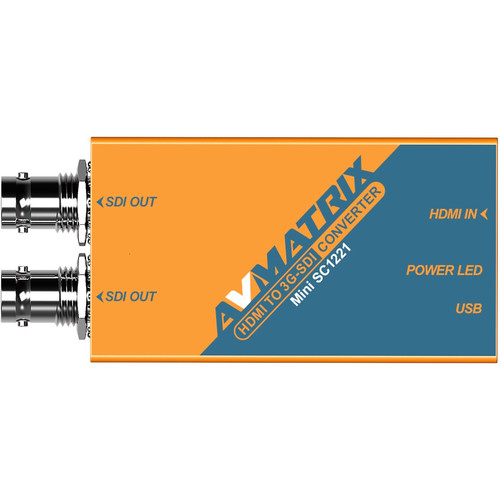

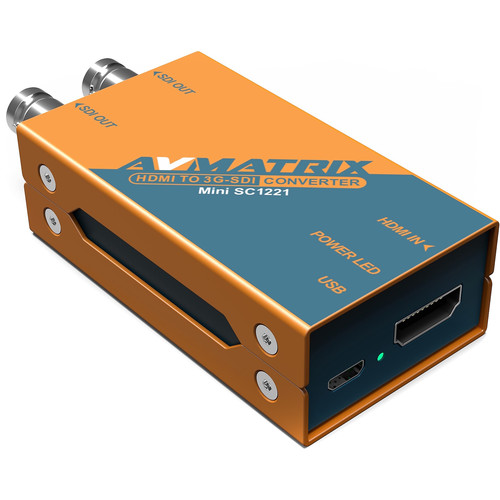

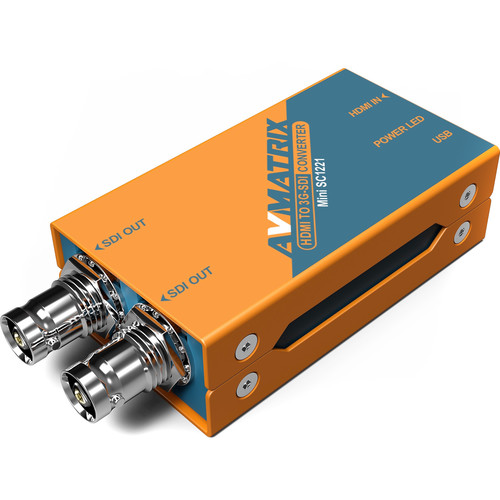

The AVMatrix Mini SC1221 from Lilliput Electronics is an ultra-compact HDMI to dual 3G-SDI signal converter in a robust metal housing.
The Mini SC1221 features a full-size HDMI input and two 3G-SDI outputs and supports up to 1080p60 resolution. EMC compliant, the Mini SC1221 can reliably be used 24 hours a day, 7 days a week without interruptions, lag, or delay. A mounting bracket is also included that easily attaches/detaches and allows for convenient mounting indoors or outdoors.

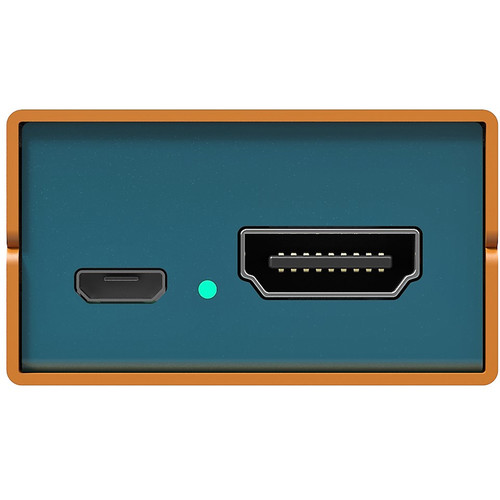

The Mini SC1221 has a USB port for power and an LED indicator that confirms power status. An AC adapter is supplied that connects into the micro-USB port to provide continuous power, but you can also connect it to other sources over a USB cable (included). For example, you can connect it to a laptop or a power bank. A 10,000mAh power bank will run the converter for approximately 24 hours.
The converter is also capable of working in a wide temperature range of -4 to 140°F.
Key Features
- HDMI Type-A input

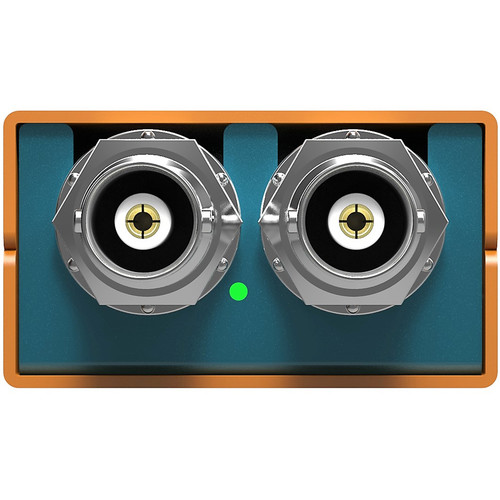

- 2 x 3G/HD/SD-SDI outputs
- Supports up to 1080p60 resolution
- EMC compliant and works 24/7 without lag/delay
- Micro-USB port for power
- LED power indicator
- AC power adapter included
- Mounting bracket included
- HDMI Type-A Input
- Supports up to 1080p60 Resolution
- Micro-USB Port for Power
- Can Be Connected to Power Banks, Etc.
- Mounting Bracket Included
- Two 3G/HD/SD-SDI Outputs
- Works 24/7 without Lag/Delay
- AC Power Adapter Included
