AVMATRIX 16CH SDI Mutltivewer & Switcher (MMV1630)
Inclusive of all taxes
View Shipping Details
7ARTISANS200
Know more about this product
Why should I buy this?
Discover this product's exceptional qualities before buying.
Compare with other product
Comparing this product to any others that are comparable.
Get most popular reviews
Find product reviews for a better experience.
Where I can use this?
Understand the usability of the product.
| Inputs | 16 x SD/HD/3G-SDI |
| Loop Outputs | 16 x SD/HD/3G-SDI |
| Outputs | 2 x SDI 1 x HDMI |
| Resolution | SDI Input: 1920 x 1080p at 60/59.94/50/30/29.97/25/24/23.98 Hz 1920 x 1080PsF at 30/29.97/25/24/23.98 Hz 1920 x 1080i at 60/59.94/50 Hz 1280 x 720p at 60/59.94/50/30/29.97/25/24/23.98 Hz 625i 50 PAL 525i 59.94 NTSC SDI/HDMI Output: 1080p at 60/50/30/25/24 Hz 1080i at 60/50 Hz 720p at 60/50 Hz |
| SDI Auto Switching | Auto Selects SD, HD, and 3G-SDI on Input |
| SDI Video Rates | SD/HD/3G-SDI |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M |
| Color Space | YUV 4:2:2, YUV 4:4:4, RGB 4:4:4 (SDI Input) YUV 4:2:2 (Multiview HDMI/SDI Output) |
AVMATRIX MMV1630

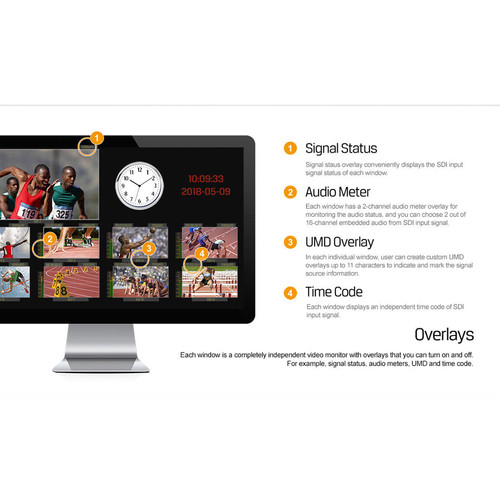

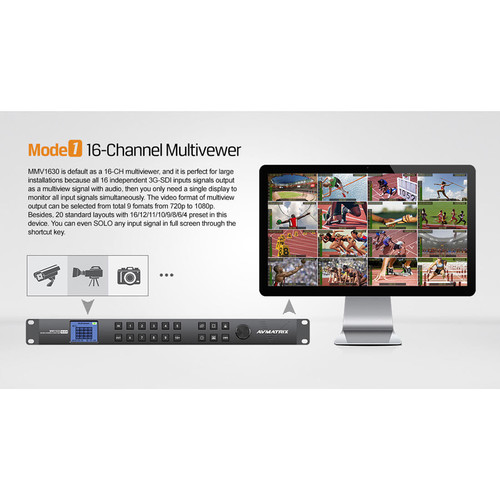

The 1 RU 16-Channel 3G-SDI Multiviewer and Switcher from AV Matrix features two modes in one device. Mode 1 acts as a 16-channel multiviewer, with 16 independent 3G-SDI inputs. The video format of multiview outputs can be selected from nine formats from 720p to 1080p and include 20 standard layouts. The signals are viewed simultaneously on one display and each window is completely independent with overlays such as signal status, audio meter, UMD, and time code.

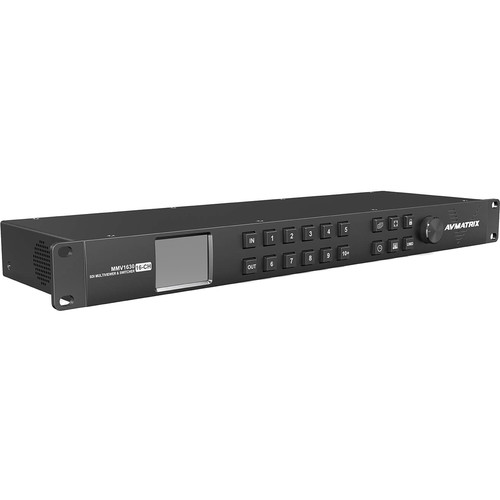

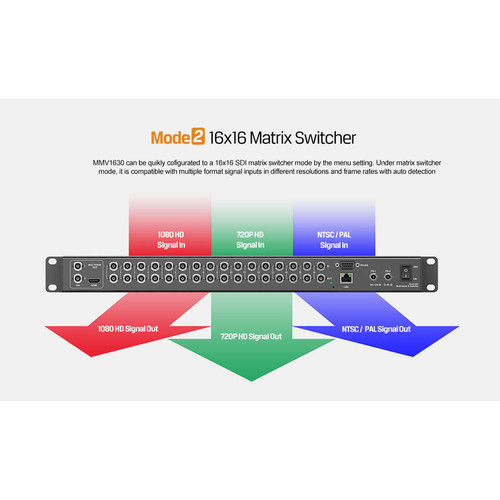

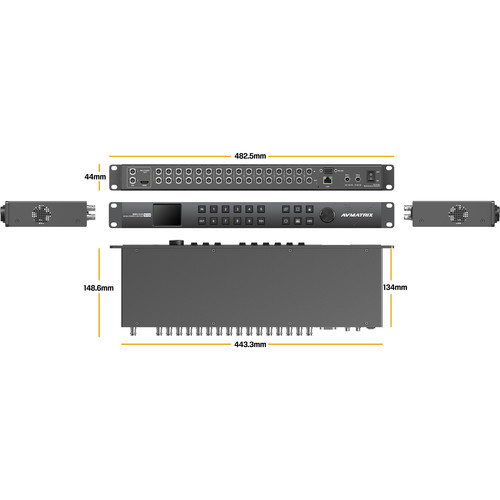

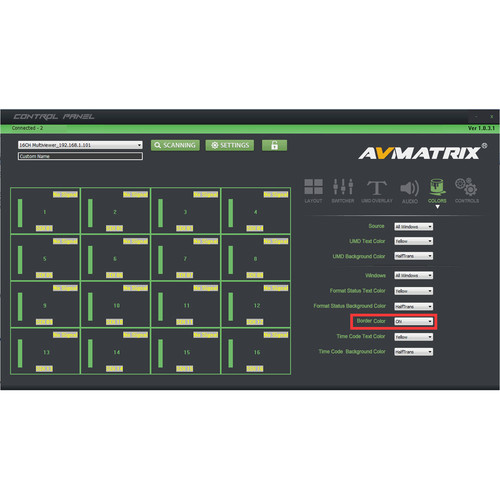

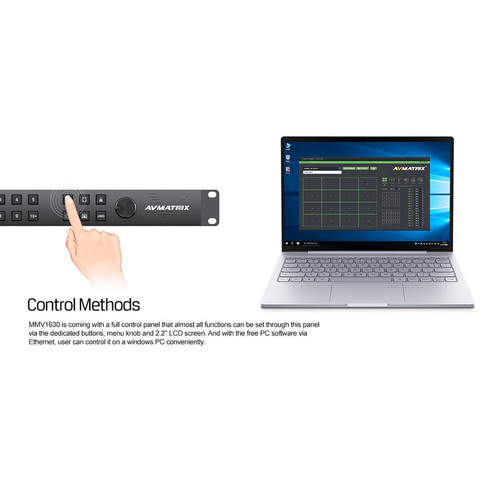

Mode 2 turns this device into a 16 x 16 SDI matrix switcher, compatible with multiple format signal inputs in different resolutions and frame rates with audio detection. The MMV1630 can be controlled using the buttons, knob, and LCD screen on the front panel, or with a PC software via Ethernet. A compact 1 RU design makes it suitable for any live broadcast or post production such as OB vans, broadcast control rooms, and studios.

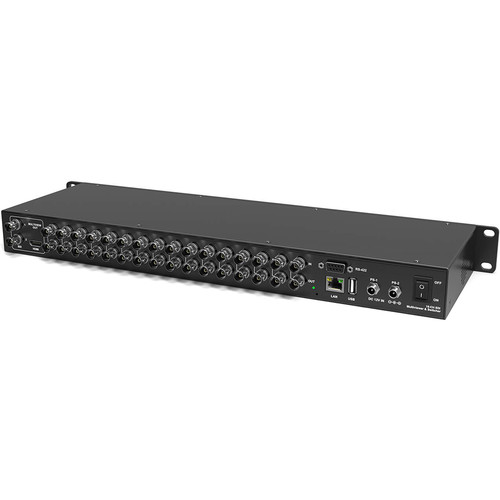

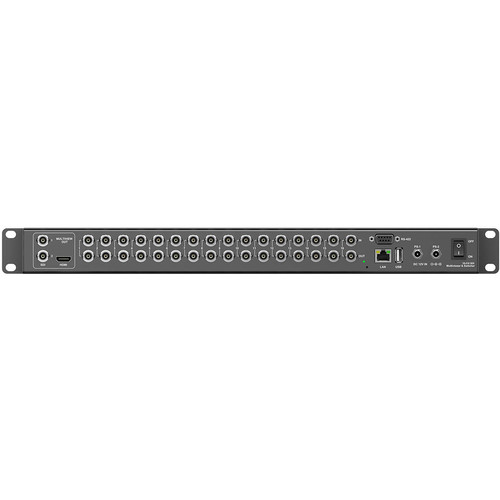

16 x 3G-SDI auto-detected inputs with loop outputs
2 x 3G-SDI and 1 x HDMI multiview scaling outputs with audio
Full screen and 20 preset layouts with clock display
Dual power design, redundant power
- 2-in-1 Device
- 16 x 3G-SDI Loop Outputs
- Supports SD, HD, and 3G-SDI
- Nine Selectable Formats up to 1080p
- Signal Status and Audio Meter Overlays
- 16 x 3G-SDI Inputs
- 2 x SDI & 1 x HDMI Outputs
- 20 Standard Layouts
