AVMATRIX SC2030 HDMI/SDI Scaling Cross Converter
Inclusive of all taxes
View Shipping Details
7ARTISANS200
Know more about this product
Why should I buy this?
Discover this product's exceptional qualities before buying.
Compare with other product
Comparing this product to any others that are comparable.
Get most popular reviews
Find product reviews for a better experience.
Where I can use this?
Understand the usability of the product.
| Unit | box |
| Video Inputs | 1 x HDMI Female 1 x BNC (3G-SDI) Female |
| Audio Inputs | 1 x 1/8" / 3.5 mm TRS Stereo Analog Female |
| Video Outputs | 1 x HDMI Female 2 x BNC (3G-SDI) Female |
| Audio Outputs | None |
| Other I/O | 1 x Micro-USB Control, Firmware Input |
| Expansion Slots | None |
| Input Video Format | HDMI (4:4:4/4:2:2 RGB, YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 23.98/24/25/29.97/30/50/59.94/60 fps 576p 50 fps 480i / 525 lines 59.94/60 fps SDI (4:4:4/4:2:2 RGB, YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 50/59.94/60 fps 720p 23.98/24/25/29.97/30/50/59.94/60 fps 576i / 625 lines 50 fps 480i / 525 lines 59.94 fps |
| Output Video Format | HDMI / SDI (4:4:4/4:2:2 RGB, YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps |

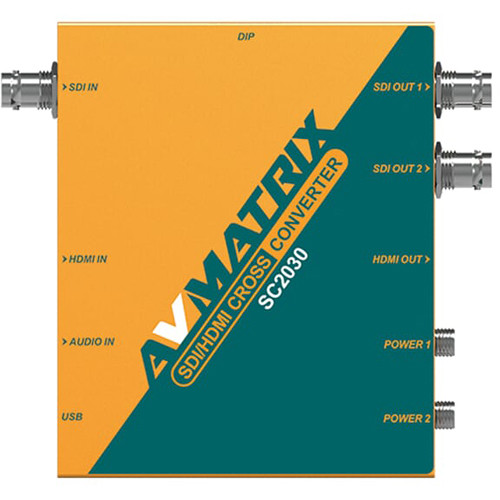

AVMATRIX SC-2030
Combining capabilities usually reserved for a computer controlled converter the SC2030 3G-SDI/HDMI Scaling Cross Converter from AV Matrix is a compact device that features a video cross converter and scaler all in one. The SC2030 features both an HDMI and a 3G-SDI input, and can cross convert either signal to the other. It also features a 3.5mm analog audio input which can be embedded into your output signal. The built-in scaler and frame rate converter each allow you to convert the input signal to your required output standard.
The SC2030 features one HDMI output and two 3G-SDI outputs, controllable via selectable conversion modes accessed by DIP switches, providing you with a variety of modes to fit your needs. It can also be controlled using a Windows computer with AV Matrix software via the micro-USB port, which is also used to power the unit. Dual threaded locking connectors allow you to power the unit with external power supplies for redundancy.
Key Features
The HDMI or SDI input can be scaled and/or frame-rate converted to the required standard
One HDMI and two SD/HD/3G-SDI outputs
One 3.5mm analog audio input can be embedded in output

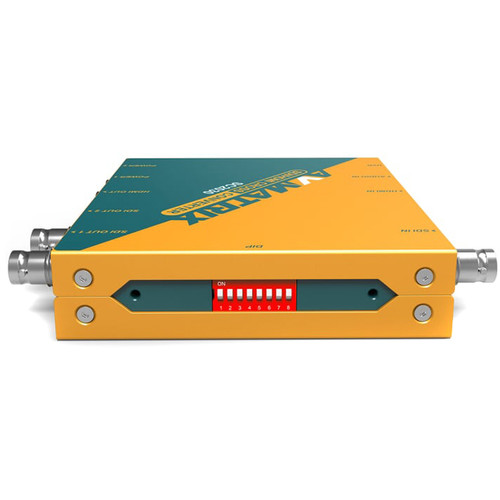

Use the DIP switches or a computer to change settings
The embedded audio pairs in the SDI and HDMI outputs can be rearranged as required
The unit incorporates a USB port for control, power, and firmware updates
Dual threaded locking connectors can provide redundant power

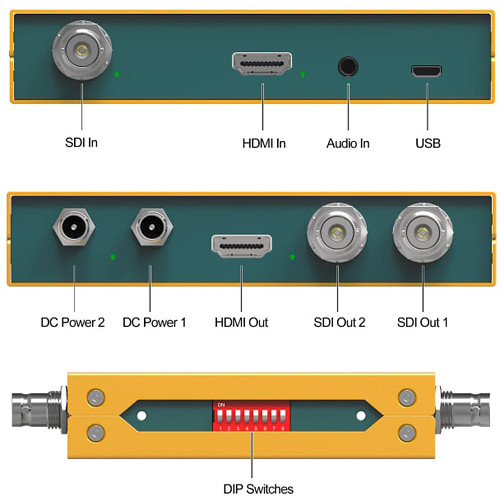

- HDMI & 3G-SDI Input, 3.5mm Audio Input
- Upscales/Downscales, Converts Frame Rate

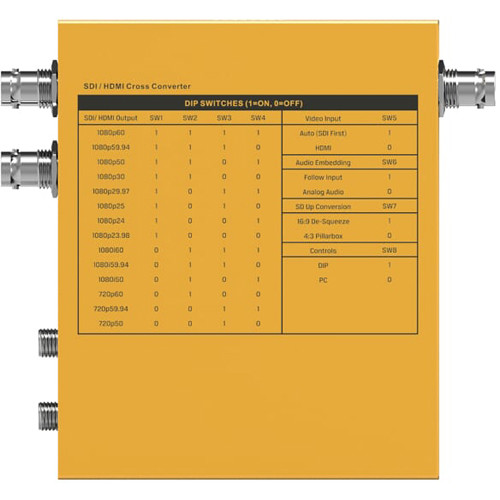

- DIP Switches Set Conversion Modes

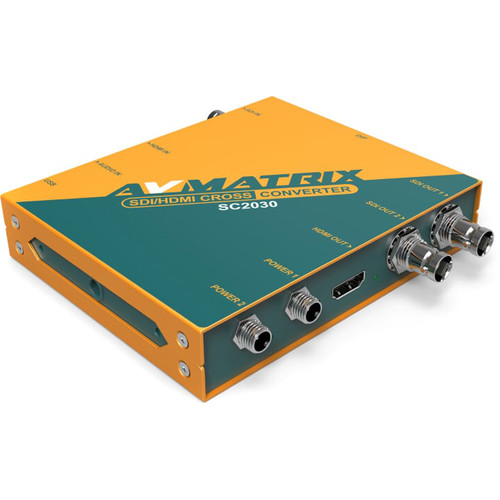

- Dual Threaded Locking Power Connector
- Converts HDMI to SDI & SDI to HDMI
- 1 x HDMI & 2 x SDI Outputs
- USB Port for Power and Control
