AVMATRIX SD1191 1×9 SDI Distribution Amplifier

By AVMATRIX

SKU: SD1191

• Add to Cart

  View Shipping Details

• Dimensions and Weight

  • Unit

    NOS

• Highlights

  1. Auto-Detects up to 1080p60 SDI Input
  2. 3G-SDI Cable Lengths up to 394'
  3. Ancillary Data Passed to the Outputs
  4. Locking Power Supply
  5. 9 x Buffered and Reclocked Outputs
  6. RGB 4:4:4 & YUV 4:2:2/4:4:4 10-/12-Bit
  7. RGB 4:4:4 & YUV 4:2:2/4:4:4 10-/12-Bit

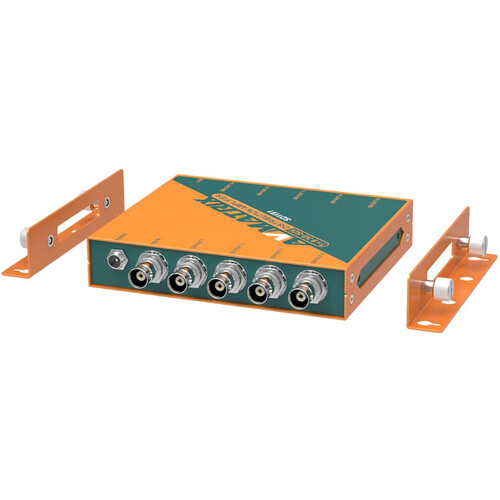

  8. Mounting Ears Included

• Explore

  Description



  Specifications



• Description

  AVMATRIX SD-1191

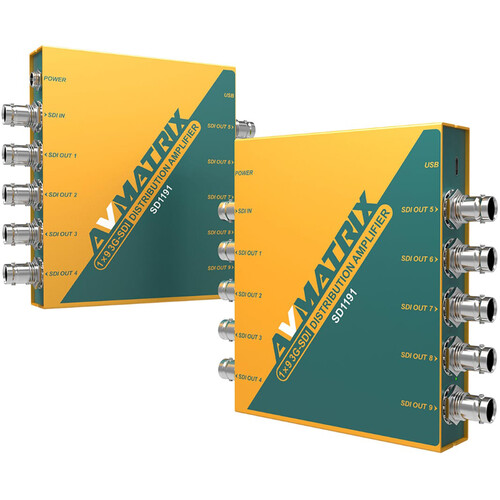

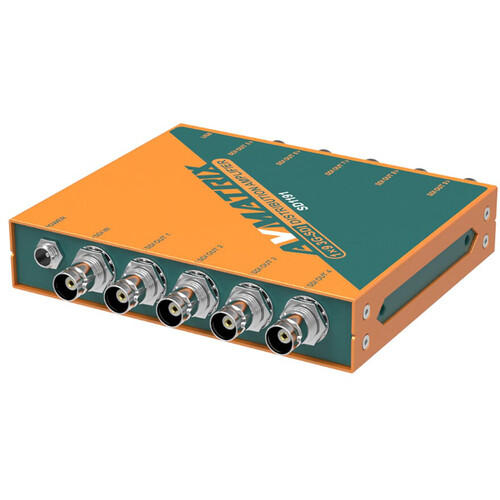

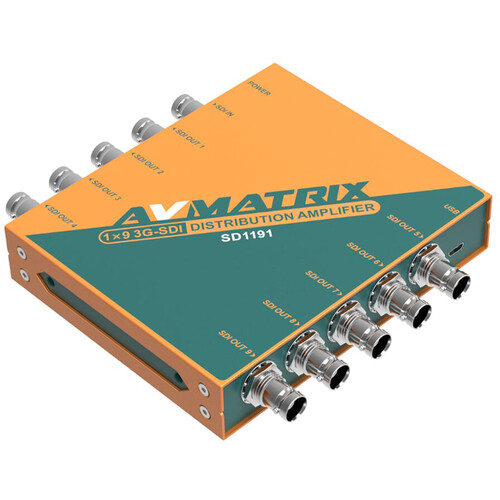

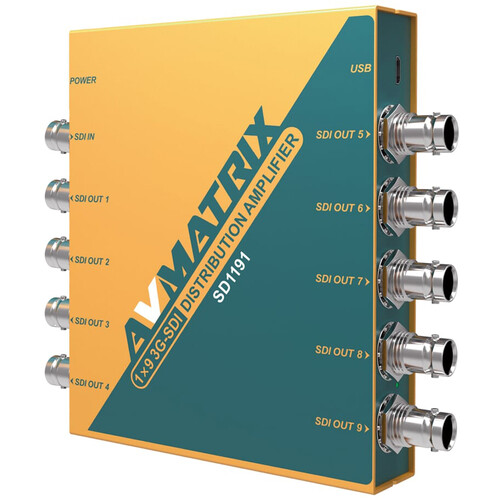

  The 1x9 3G-SDI Reclocking Distribution Amplifier from AVMATRIX features a compact, all-metal design that can be mounted on a wall or attached to the bottom of a desktop. It employs reclocking and cable equalization that allow cable lengths up to 394' for 3G-SDI signals, 656' for HD-SDI, and 1312' for SD-SDI. The automatic reclocking and equalization process regenerates the input, reduces jitter, and improves the SDI eye pattern, allowing for the longer cable runs.




  The single input auto-detects 3G/HD/SD signals, and you get nine automatically buffered and reclocked outputs in up to 1080p60 resolution. The input and all outputs also offer DVB-ASI compatibility.

  3G/HD/SD-SDI input and 9 buffered and reclocked outputs all supporting DVB-ASI signals




  RGB 4:4:4 10-bit/12-bit




  YUV 4:2:2/4:4:4 10-bit/12-bit




  Automatic cable equalization and signal retiming




  All ancillary data is passed to the outputs

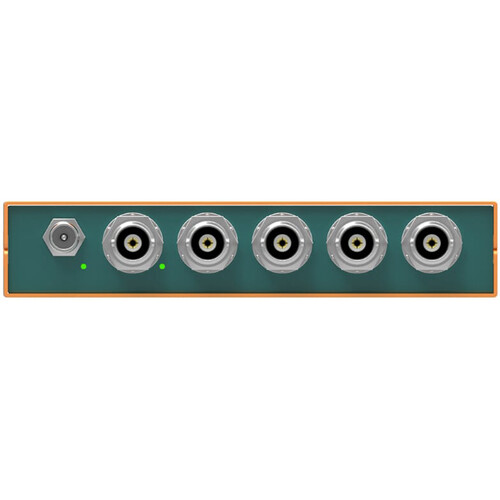

  LED indicators for power and signal lock




  Threaded locking power connector




• specifications

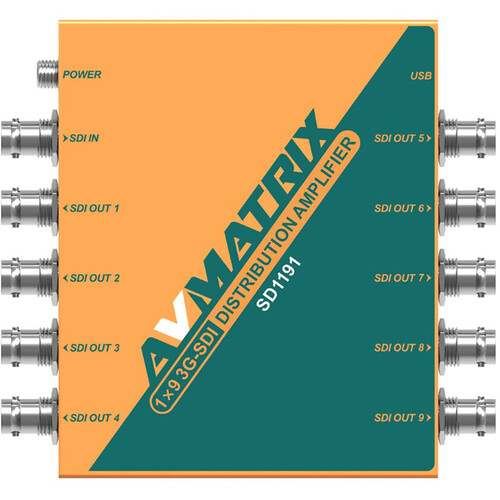

  • Input

    1 x BNC (3G-SDI / HD-SDI / SD-SDI / DVB-ASI)

  • Embedded Audio

    HDMI

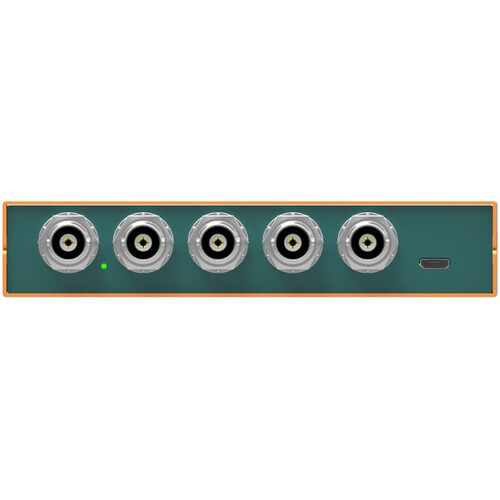

  • Output

    9 x BNC (3G-SDI / HD-SDI / SD-SDI / DVB-ASI)

  • Other I/O

    1 x Micro-USB

  View More Specifications
