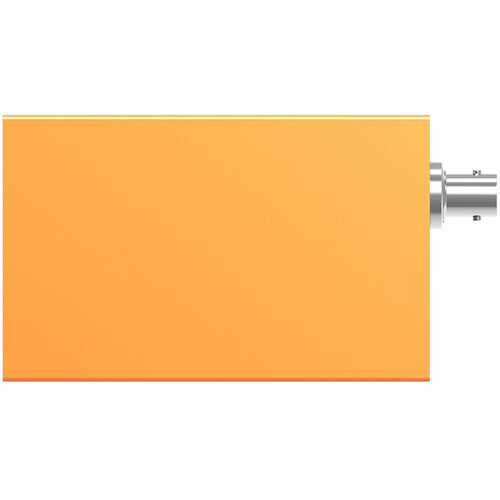

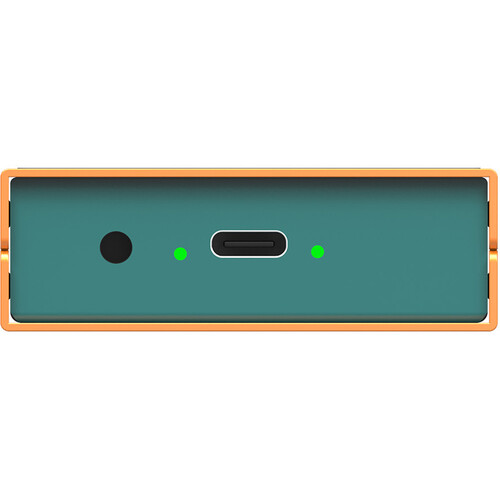

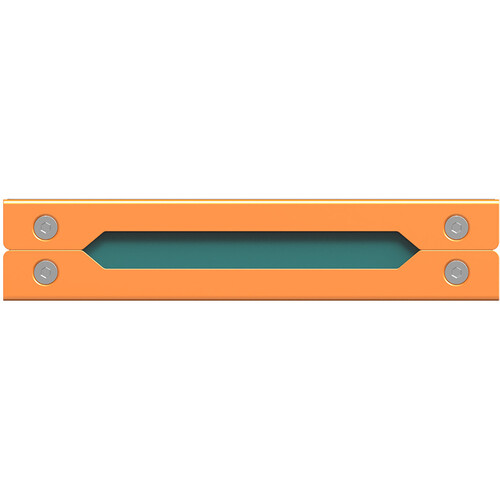

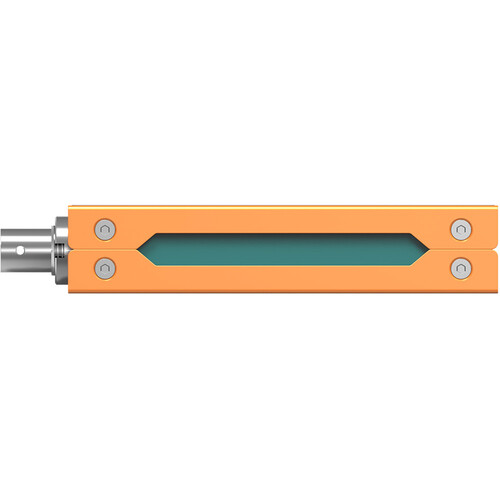

AVMATRIX UC2018 SDI/HDMI to USB3.1 Gen 1 Capture

By: AVMATRIX
SKU: UC2018
â‚ı17,890 36% off
MRP: â‚ı27,999

Inclusive of all taxes

View Shipping Details

Know more about this product

  • Why should I buy this?

    Discover this product's exceptional qualities before buying.

  • Compare with other product

    Comparing this product to any others that are comparable.

  • Get most popular reviews

    Find product reviews for a better experience.

  • Where I can use this?

    Understand the usability of the product.

View More
Dimensions and Weight
UnitNOS
Specification
System Connection USB-A 3.0 / 3.1/3.2 Gen 1

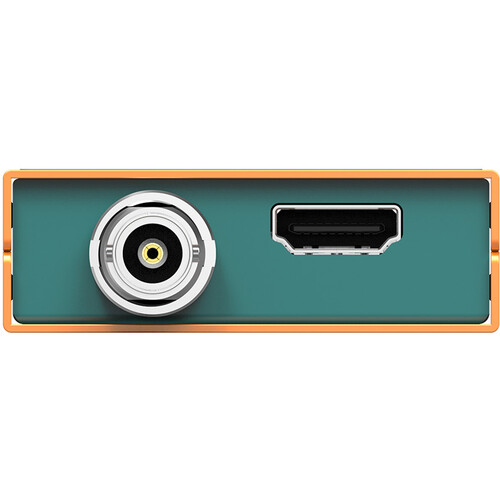

Video Inputs 1 x BNC (3G-SDI) 1 x HDMI (HDMI 1.4a)
Audio Inputs None
Input Video Format SDI 1080p at 25/29.97/30/50/59.94/60 fps HDMI 1080p at 24/25/30/50/60 fps 1080i 50/60 fps 720p 50/60 fps 576p 576i / 625 lines 480p 480i / 525 lines
Output Video Format USB-A 1080p at 25/29.97/30/50/59.94/60 fps WUXGA+ (1680 x 1050) 25/29.97/30/50/59.94/60 fps 720p 25/29.97/30/50/59.94/60 fps XGA (1024 x 768) 25/29.97/30/50/59.94/60 fps XGA (1024 x 768) 25/29.97/30/50/59.94/60 fps 960 x 540 25/29.97/30/50/59.94/60 fps 576p 25/29.97/30/50/59.94/60 fps 480p 25/29.97/30/50/59.94/60 fps 640 x 360 25/29.97/30/50/59.94/60 fps
Embedded Audio HDMI/SDI/USB
OS Compatibility Windows 7 Windows 8 Windows 10 Linux 2.6.38 or Later macOS 10.8 or Later *As of September, 2020: Check with manufacturer for the most up-to-date compatibility
Power Consumption Device: 5 VDC (3 W)
View More Specifications
Description

AVMATRIX UC2018

Record or stream an HDMI or SDI signal via USB 3.0 with the Lilliput UC2018 SDI/HDMI to USB 3.0 Video Capture. With its 3G-SDI and HDMI v1.4a inputs, this capture device will accept resolutions up to 1920 x 1080p60. It automatically detects the incoming video format and transmits it via USB 3.0 at up to 350 MB/s. It supports UVC video capture as well as YUV video output.


As this is a USB bus-powered device, you can connect multiple units to the same computer (additional USB hardware may be required). The UC1218 is compatible with a variety of available third-party software apps for Windows, Linux, and macOS.

Compatible with Windows Media Encoder, Adobe Flash Media Live Encoder, Real Producer Plus, VLC, Linux, QuickTime Broadcaster, QuickTime Player, Wirecast, Potplayer, and other UVC compatible software


Compatible SDK include DirectShow and DirectSound for Windows


No drivers needed for Windows, macOS, or Linux


Automatically determines input video format


View More
Highlights
  1. Supports up to 1920 x 1080p60 Resolution
  2. Performs Frame Rate Conversion
  3. Supports YUV 4:2:2 Video Output
  4. Works with Third-Party Capture Software
  5. Hardware Scaling and Deinterlacing
  6. UVC Compatible
  7. For Windows, Linus, and macOS
  8. USB Powered
