AVMATRIX VS0601U Mini 6CH Streaming Switcher
Inclusive of all taxes
View Shipping Details
Know more about this product
Why should I buy this?
Discover this product's exceptional qualities before buying.
Compare with other product
Comparing this product to any others that are comparable.
Get most popular reviews
Find product reviews for a better experience.
Where I can use this?
Understand the usability of the product.
| Unit | NOS |
| Effect Types | 1 x Transition |
| Switching Type | T-Bar |
| Processing Resolution | 1080p |
| Number of Video Input Sources | 6 |
| Video Inputs | 4 x BNC (3G-SDI) Female 2 x HDMI Female |
| Input Video Format | HDMI 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 23.98/24/25/29.97/30/50/59.94/60 fps 576p 50 fps 576i / 625 lines 50 fps SDI 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 23.98/24/25/29.97/30/50/59.94/60 fps 576i / 625 lines 50 fps 480i / 525 lines 59.94 fps |
| Audio Inputs | 1 x 1/8" / 3.5 mm TRS Stereo Analog Female 1 x 2RCA Stereo Analog Female |
| Input Audio Format | Analog |
AVMATRIX VS0601U
Switch up to six different HDMI and SDI video inputs while monitoring the program feed with the VS0601U Mini 6-Channel SDI/HDMI Multi-Format AV Switcher from AVMATRIX. Concert productions, events, houses of worship, virtual studios, educational institutions, and live sports programming are some of the use cases where the VS0601U could be utilized. Its portable form factor makes it a TV studio you can take anywhere and set up with minimal effort or additional equipment. This model also features a USB Type-C output that allows you to stream uncompressed video with embedded audio to any platform, such as YouTube, Facebook Live, Zoom, and others via a Windows, Mac, or Linux computer.
You can output multiview layouts via USB Type-C, HDMI, and SDI that show preview, program, and input sources, all on the same screen with configurable PiP functionality. The VS0601U features four 3G-SDI and two HDMI inputs that can be connected to cameras or other consumer or professional sources for switching up to 1080p60 video with embedded audio. You can also mix the audio using the analog stereo 2RCA and 3.5mm inputs and outputs along with the embedded audio.

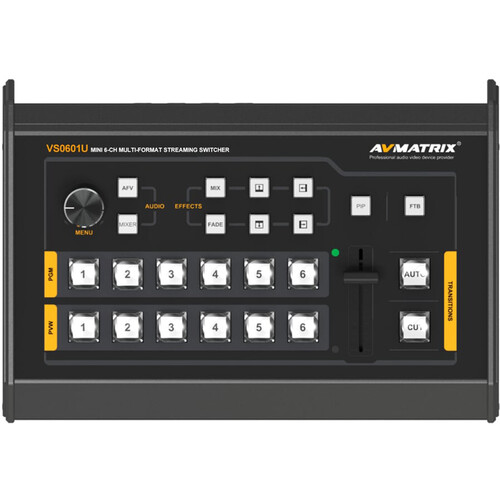

Its interface features source and destination buttons and a T-bar for transitions and cuts as well as mix, fade, and wipe effects. It features a tally interface and emergency fade-to-black (FTB) functionality.
Key Features
Six input channels with four SDI and two HDMI

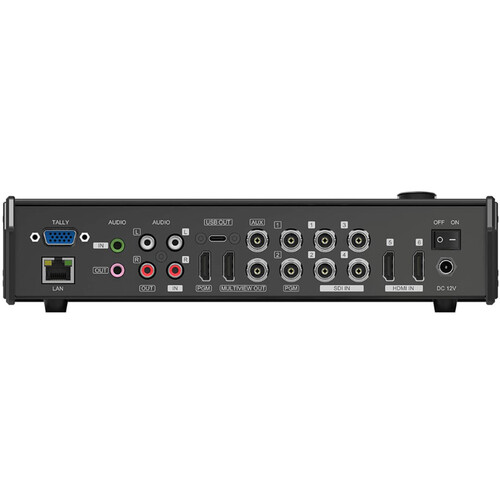

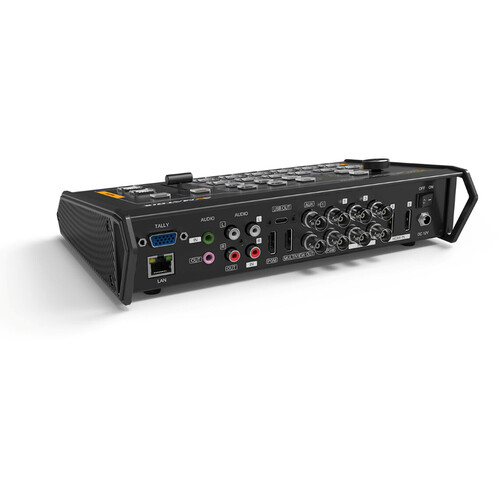

Two 3G/HD/SD-SDI and one HDMI PGM (Program) output, one SDI AUX output, and one each HDMI and SDI multiview output
USB Type-C output allows you to stream uncompressed video with embedded audio to any platform, such as YouTube, Facebook Live, Zoom, and others via a Windows, Mac, or Linux computer
T-bar, Auto/Cut transitions, and Mix/Fade/Wipe effects
Adjustable PiP/PoP window size and position
Audio mixer with 3.5mm and RCA audio input and output, along with USB Type-C, HDMI, and SDI embedded audio
GPIO interface for live tally system
Quick FTB (Fade-to-Black) for emergency
- Compact 6-Channel Video Switcher
- SDI/HDMI PGM, AUX, and Multiview Outputs
- Input up to 4K60 Video via HDMI
- T-Bar, Auto, and Cut Transitions
- GPIO for Live Tally, FTB for Emergency
- 4 x 3G-SDI and 2 x HDMI Inputs
- Stream via PC with USB Type-C Output
- Luma/Chroma Key, Mix/Fade/Wipe Effects
