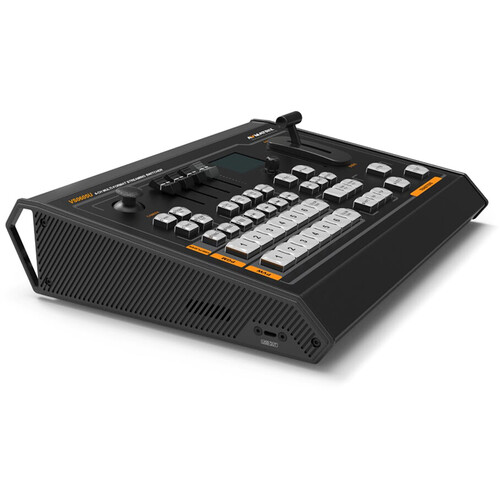

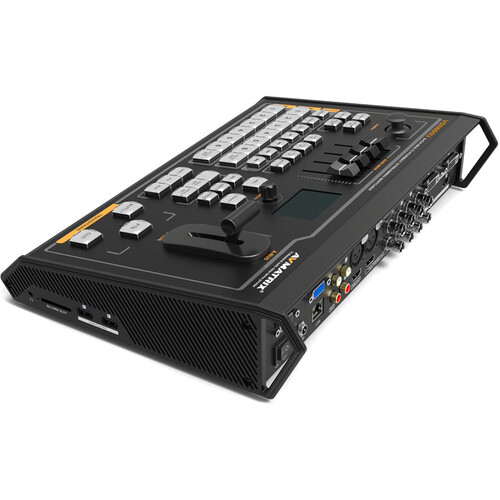

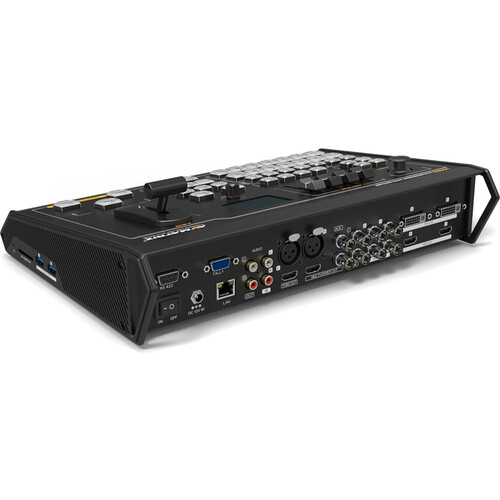

AVMATRIX VS0605U 6-Channel SDI/HDMI Multi-Format Streaming Switcher
Inclusive of all taxes
View Shipping Details
Know more about this product
Why should I buy this?
Discover this product's exceptional qualities before buying.
Compare with other product
Comparing this product to any others that are comparable.
Get most popular reviews
Find product reviews for a better experience.
Where I can use this?
Understand the usability of the product.
| Unit | NOS |
| Video Inputs | 4x BNC (3G-SDI) 2x HDMI (2.0) 2x DVI-I DL (DVI/VGA) |
| Input Video Format | SDI 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 720p 23.98/24/25/30/50/59.94/60 fps 576i / 625 lines 50 fps 480i / 525 lines 59.94 fps HDMI UHD 4K at 30/50/60 fps DCI 2K 30/50/60 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 23.98/24/25/29.97/30/50/59.94/60 fps 576p 50 fps 576i / 625 lines 50 fps |
| Audio Inputs | 2x XLR 3-Pin Analog 2x RCA Analog |
| Video Outputs | 2x BNC (3G-SDI) (Program) 2x HDMI (Program) 1x USB-C (Program) |
| Output Video Format | HDMI / SDI / USB-C 1080p at 24/25/30/50/60 fps |
| Audio Outputs | 2x RCA Analog 1x 1/8" / 3.5 mm TRS |
| Multiview Output | 8-Way Multiview via SDI 8-Way Multiview via HDMI |

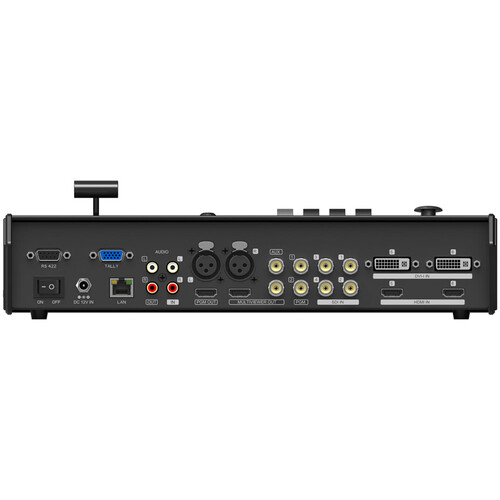

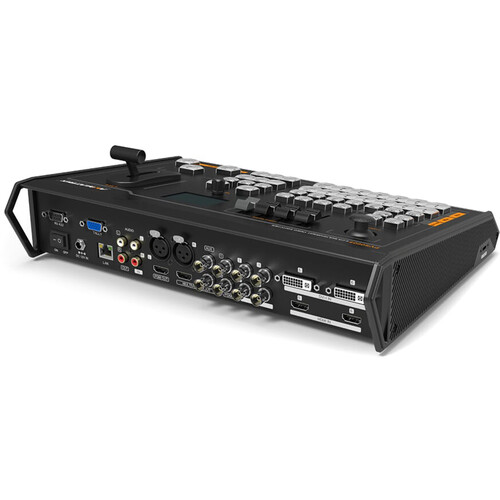

| Other I/O | 2x USB-A Input 1x RJ45 LAN Input 1x DE-9/DB-9 RS-422 1x DE-15/DB-15 Tally |
AVMATRIX VS0605U Overview

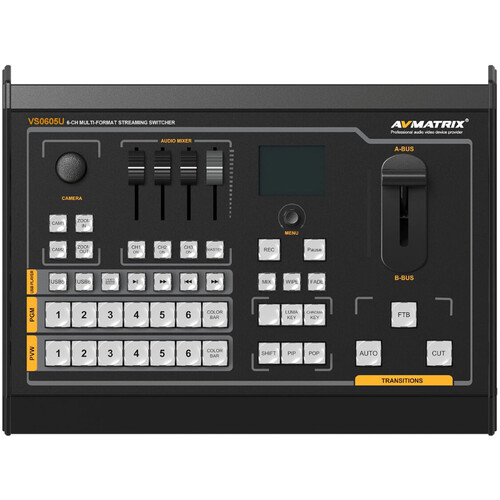

The 6-channel AVMATRIX VS0605U desktop switcher supports six sources over your choice of four 1080p60 SDI, two UHD 4K60 HDMI, two DVI-I, and two USB Type-A media player inputs. Everything is scaled to up to 1080p/i at 60 fps and output over three SDI/HDMI PGM, two SDI/HDMI multiview outputs, or an SDI AUX out. Six channels plus preview and program out can be monitored simultaneously in a 9-window split, with clock and settings info in the ninth window at the bottom right. Over a USB Type-C interface, UVC/UAC streaming can be set up plug-and-play with a 1080p60 uncompressed video/audio capture workflow.
The built-in audio mixer can manage six channels of SDI/HDMI/USB embedded audio and two XLR/RCA audio inputs. Three stereo channels can be controlled individually via the faders and corresponding buttons. PGM out can be recorded to an optional SD card in up to 1080p60. Also, PTZ cameras can be controlled from the switcher's joystick over VISCA and Pelco-D/P protocols via the RS-422/485 DB-9 port. The multi-format switcher offers a highly comprehensive solution suitable for sports, education, virtual studios, concerts, and many other live event and broadcast applications.
Additional Features
PiP and PoP mode with adjustable size and position
Chroma/Luma Key real-time background matting for virtual studios
T-bar/Auto/Cut transitions and Mix/Fade/Wipe effects (three transition rates in Auto)
RJ45 LAN port (synchronize local time)
DVI-I port compatible with VGA
RS-422 port compatible with RS-485

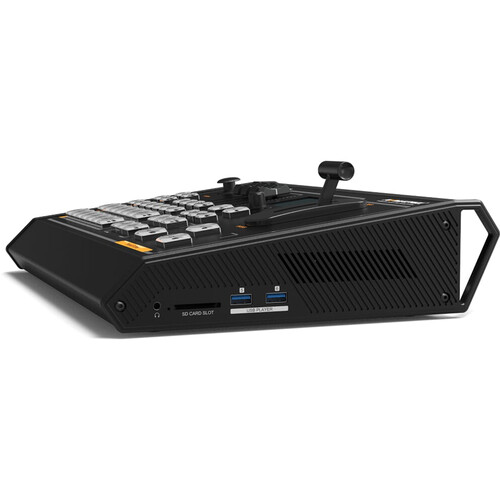

H.264 recording to optional SD cards
Following/mixing audio mixer
- 6-Channel Workflow with 1080p Scaling
- 4 x 1080p60 SDI & 2 x 4K60 HDMI Inputs
- 2 x DVI-I (VGA) & 2 x USB-A Inputs

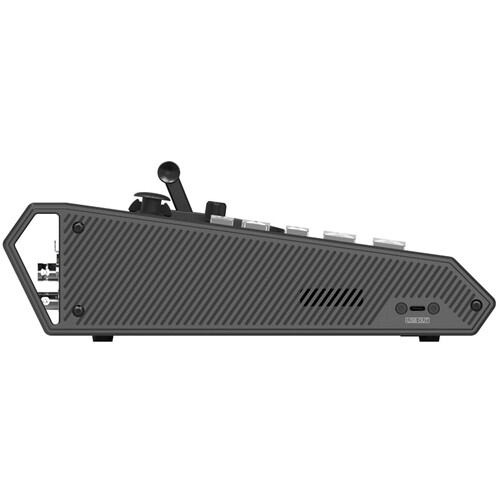

- USB-C Uncompressed 1080p60 Streaming
- 3 x PGM & 2 x Multiview SDI/HDMI Outputs
- 9-Way Multiview with Clock & Data
- 6-Channel Audio Mixer
- XLR/RCA & SDI/HDMI/USB Embedded Audio
