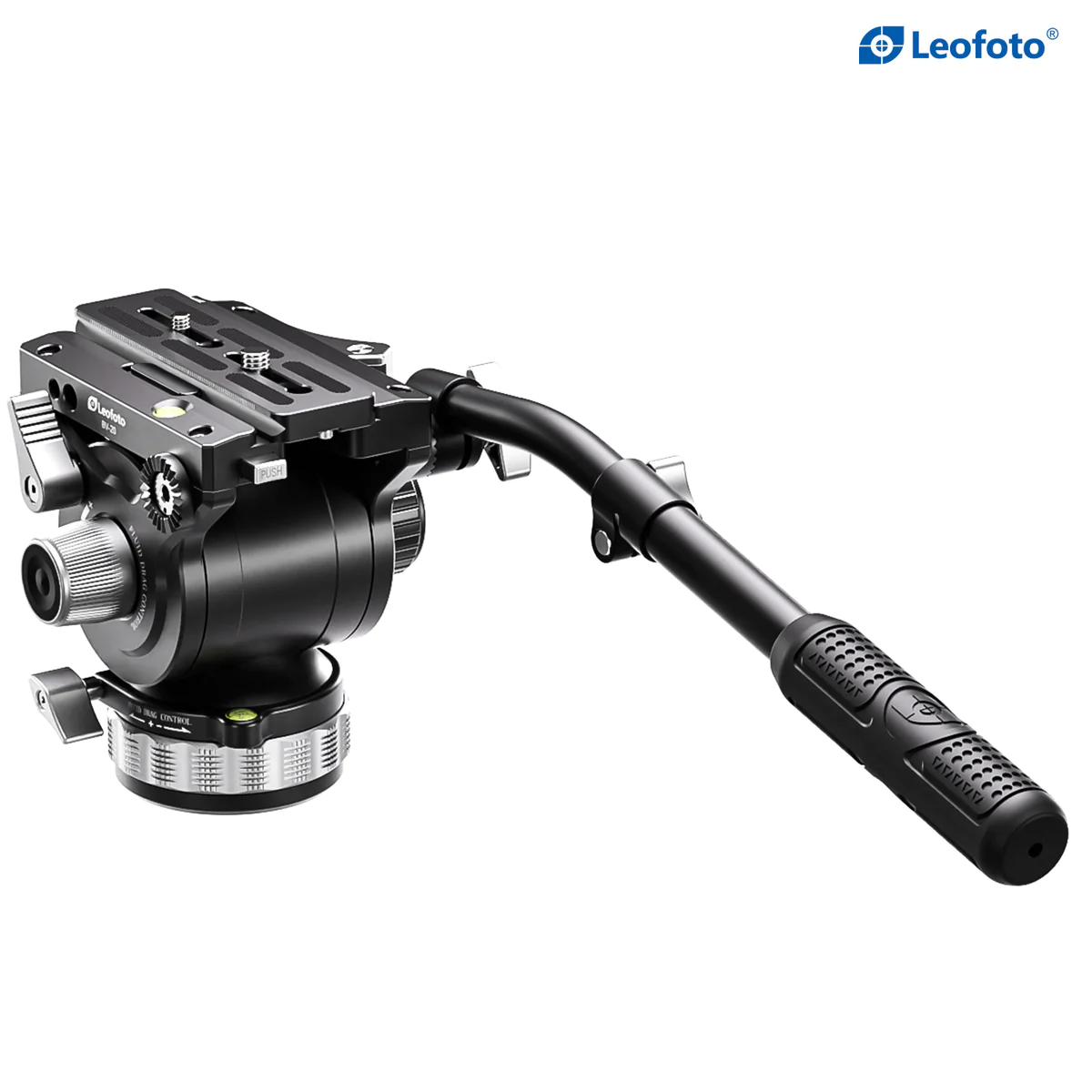

Leofoto BV-20 Pro Fluid Video Head with Lever-Release Clamp and Arca Compatible QR Plate

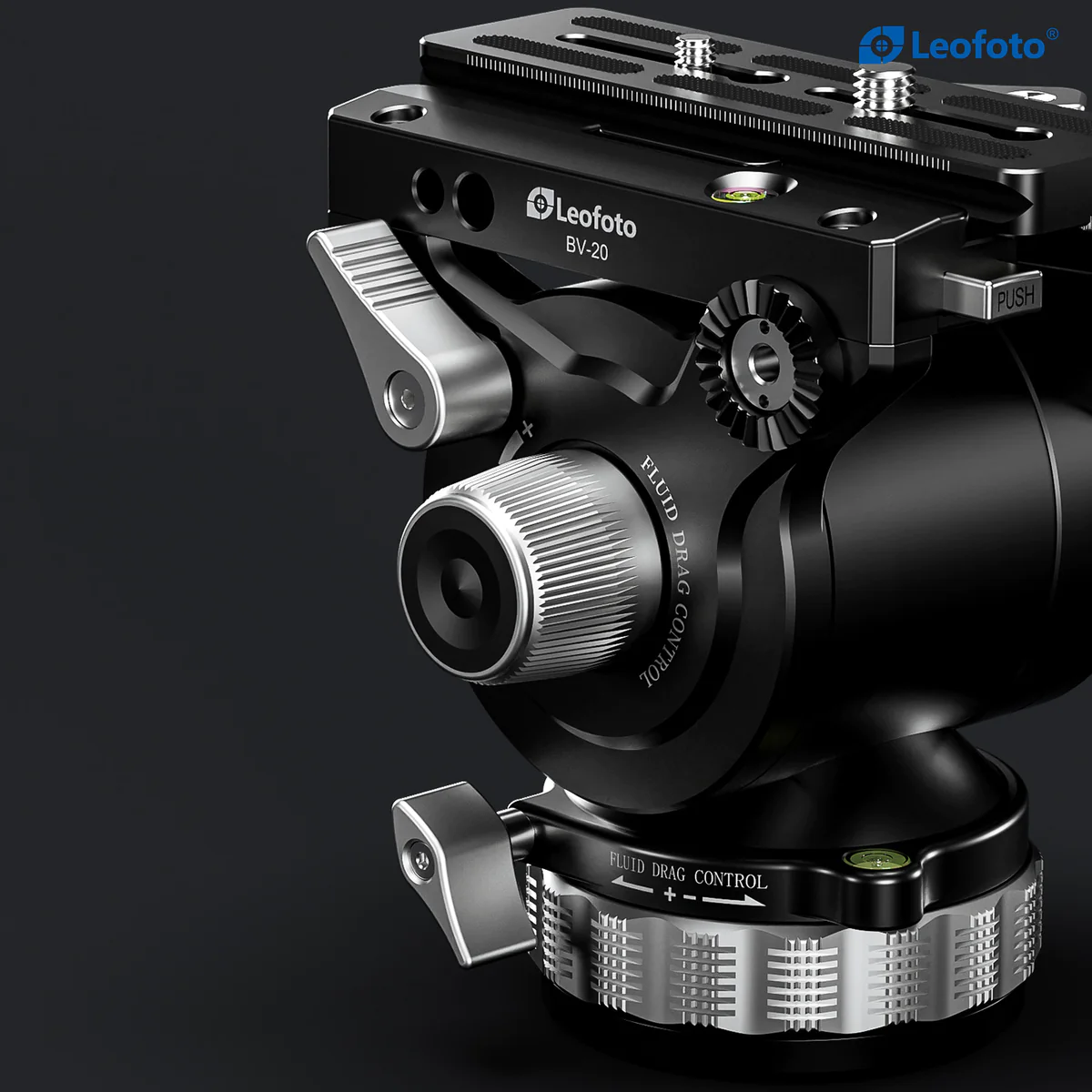

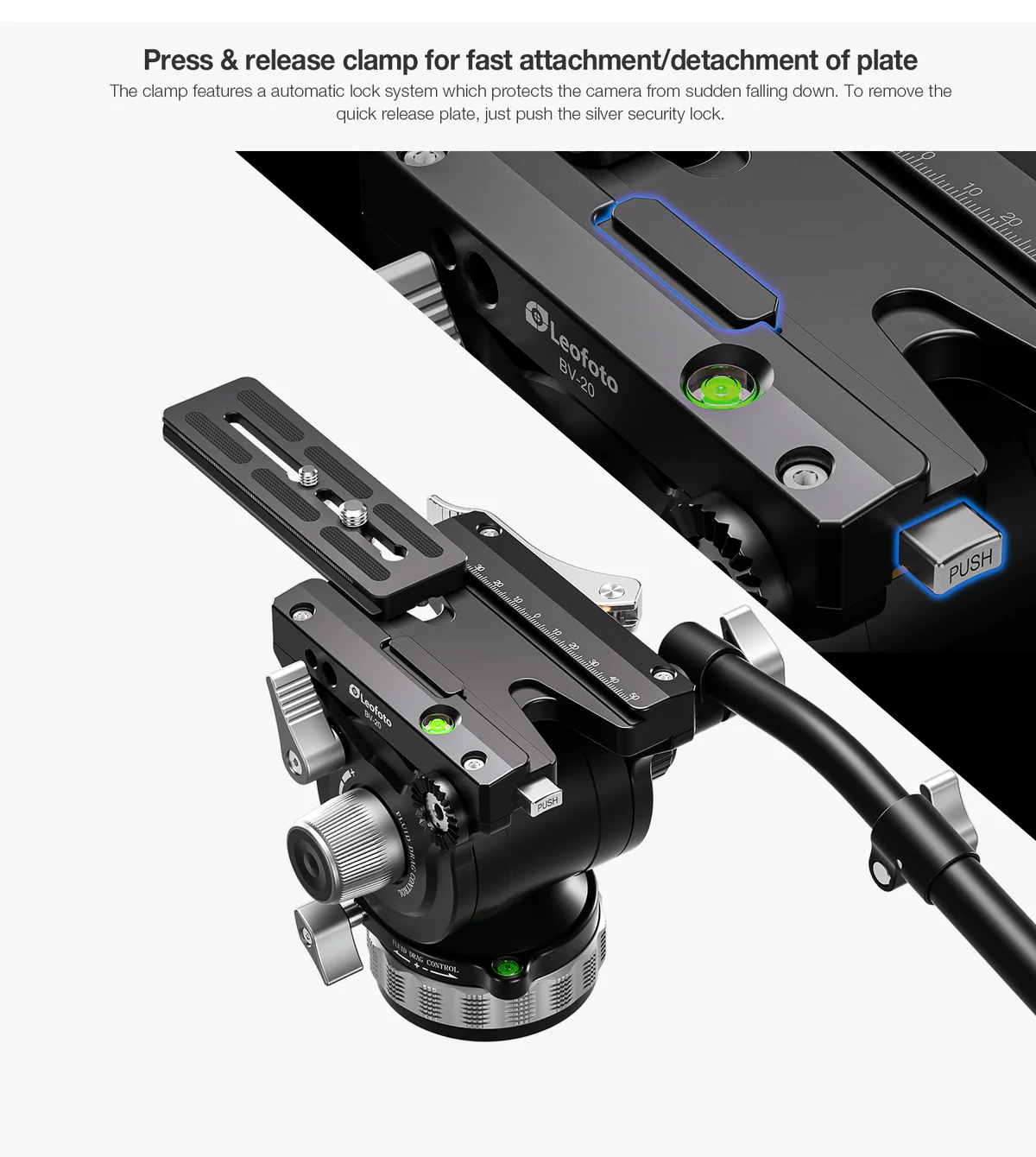

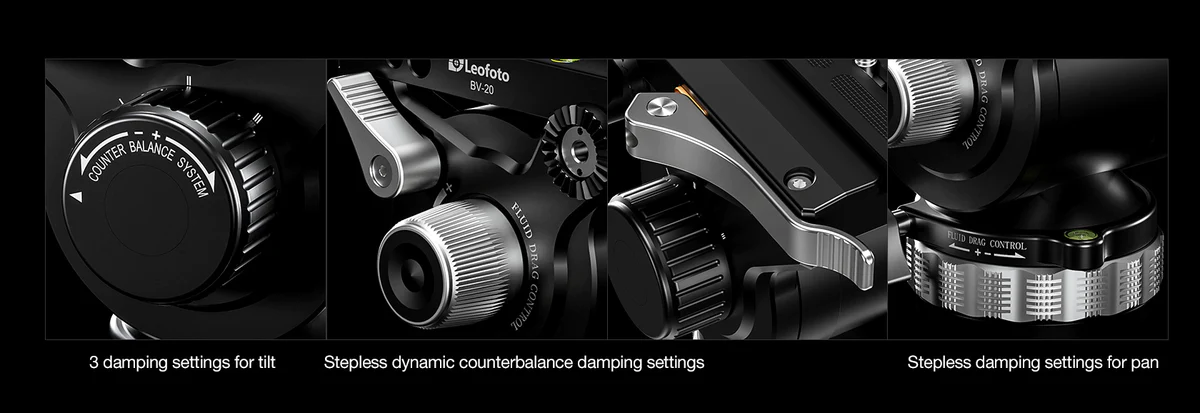

The Leofoto BV-20 (Lever-Release Clamp) Fluid Video Head is the newly developed professional fluid head which features excellent new features, top of the line quality and precision, ergonomics, quick adjustment and smooth operation. This fluid head has a precise and continuous rebound balance system which is the perfect option for most video cameras. The tilting system and damping adjustment are extremely smooth and the clamp has an automatic locking system to prevent the camera from falling. There is drag control on both pan, and tilt to ensure smooth operation.

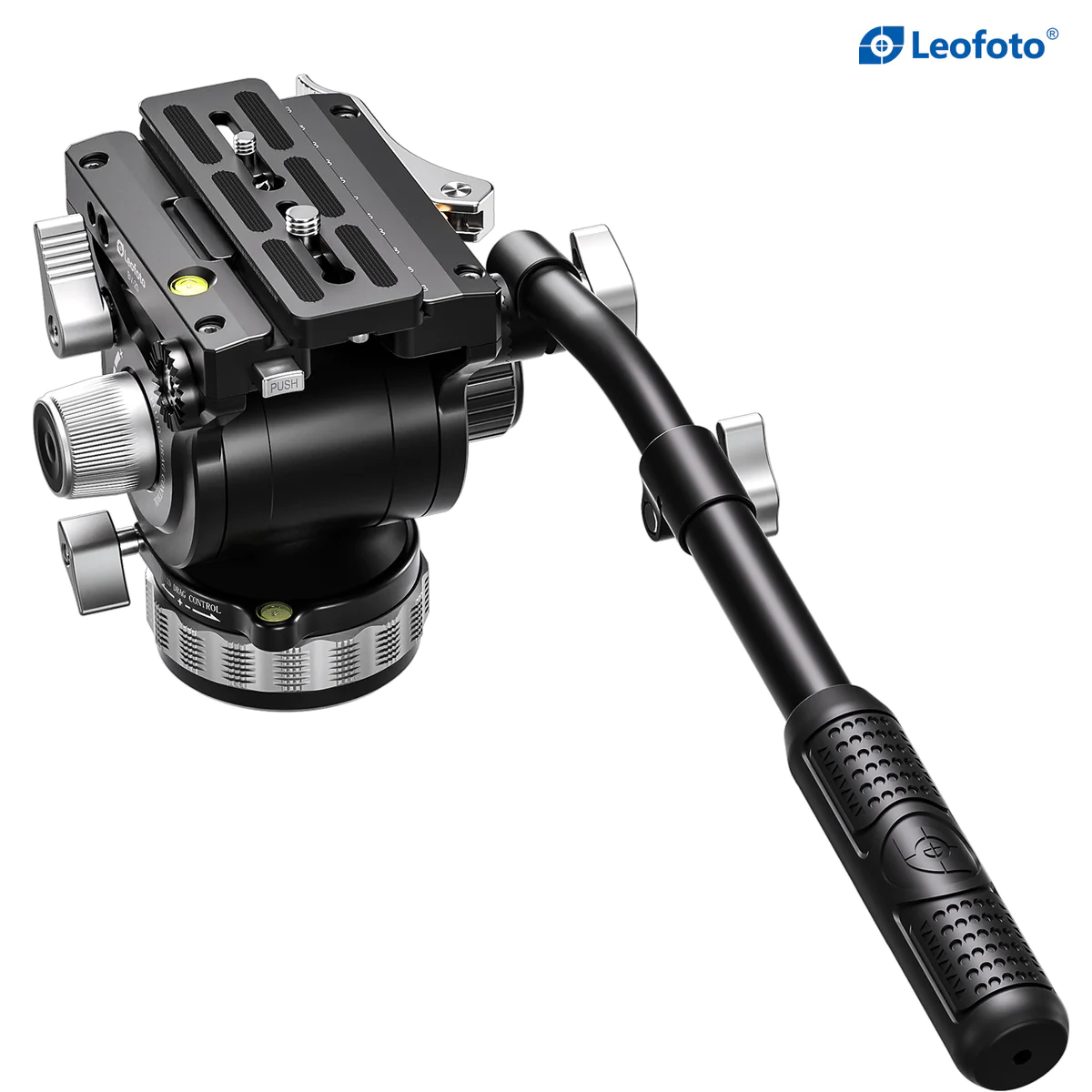

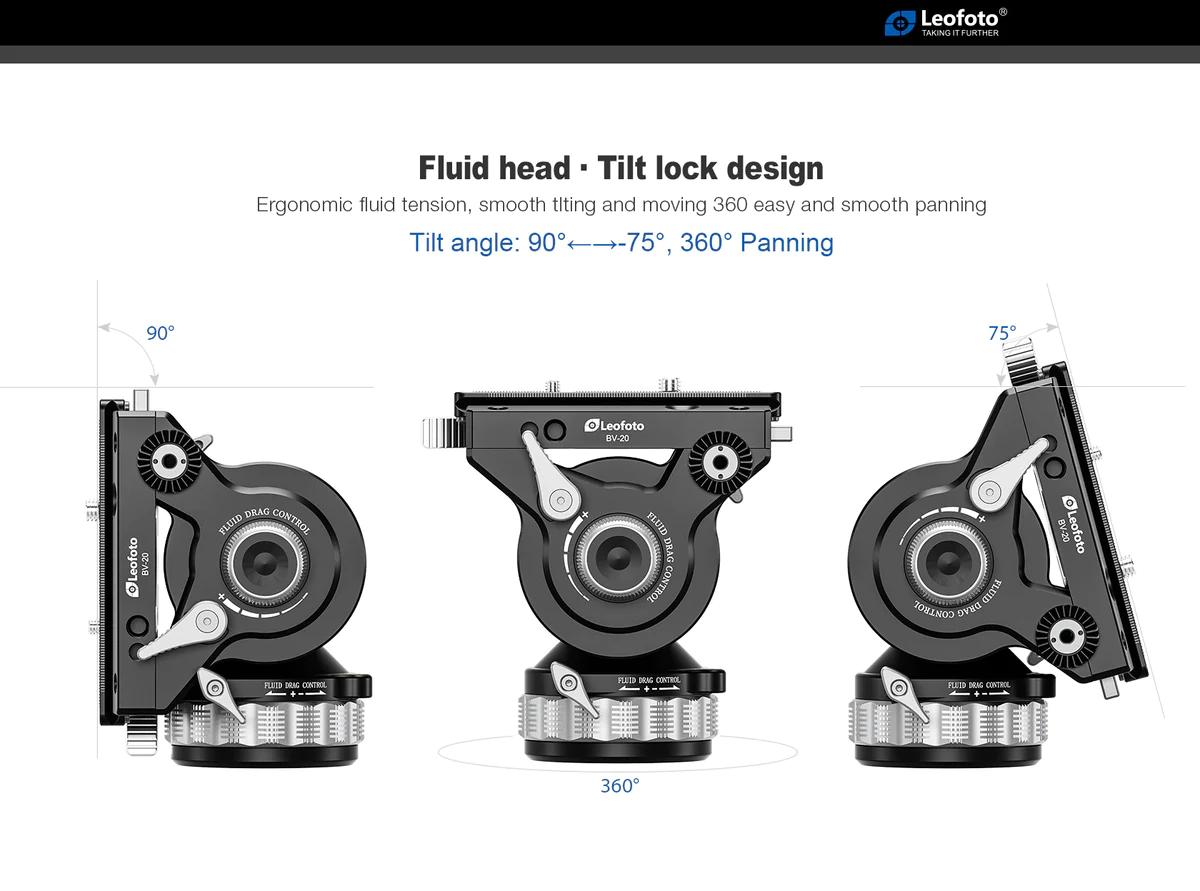

The head pans 360° and has a tilt range of 90 to 75°. Likewise, the camera platform is indexed, making it fast and easy to rebalance your setup on the head. Two bubble levels (on the pan base and one on the camera platform) allow you to confirm your head is level. Handle mounting rosettes allow you to mount the included pan handle to either side of the head for operator comfort, and individual pan and tilt locks provide security when you need to either only tilt or pan.

130mm QR plate features both a 1/4"-20 and 3/8"-16 mounting threads.

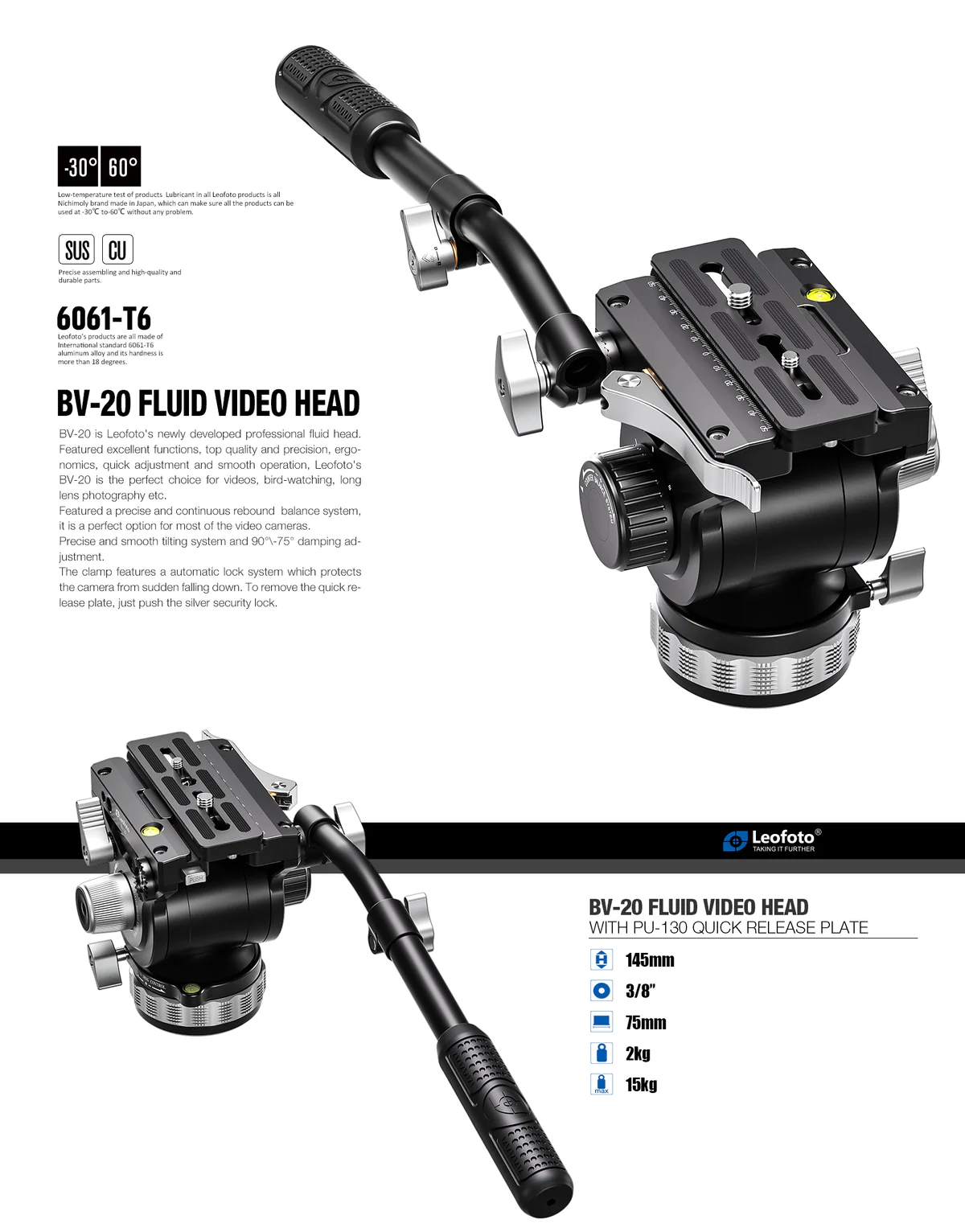

Leofoto BV-20 Fluid Video Head:

Base Diameter：75mm/ 2.95"

Height：145mm/ 5.7"

Weight：2kg/ 4.4lb

Max Load：15kg/ 33lb

Balance load: 0-4kg/ 0-8.8lb

Mounting socket：3/8“

Plate length: 130mm/ 5.12"

Tilt angle: +90/-75 degrees
