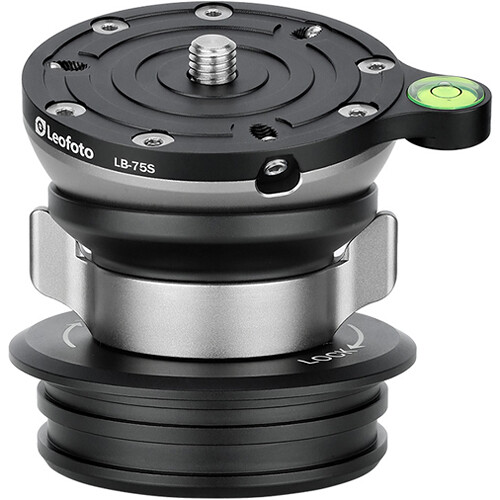

Leofoto LB-75S Leveling Base with Butterfly Handle

By Leofoto

SKU: LB-75S

â‚ı9,94922% off

Inclusive of all taxes

  • View Shipping Details

  • Dimensions and Weight

    • Unit

      NOS

    • Manufacturer

      Leofoto

    • Country of Origin

      CHINA

  • Highlights

    1. Load Capacity: 55.1 lb
    2. Adjustment Range: +/- 15°
    3. Half-Ball Type Leveling Capability
    4. 70mm Collar System Base
    5. 3/8"-16 Tripod Mount Stud

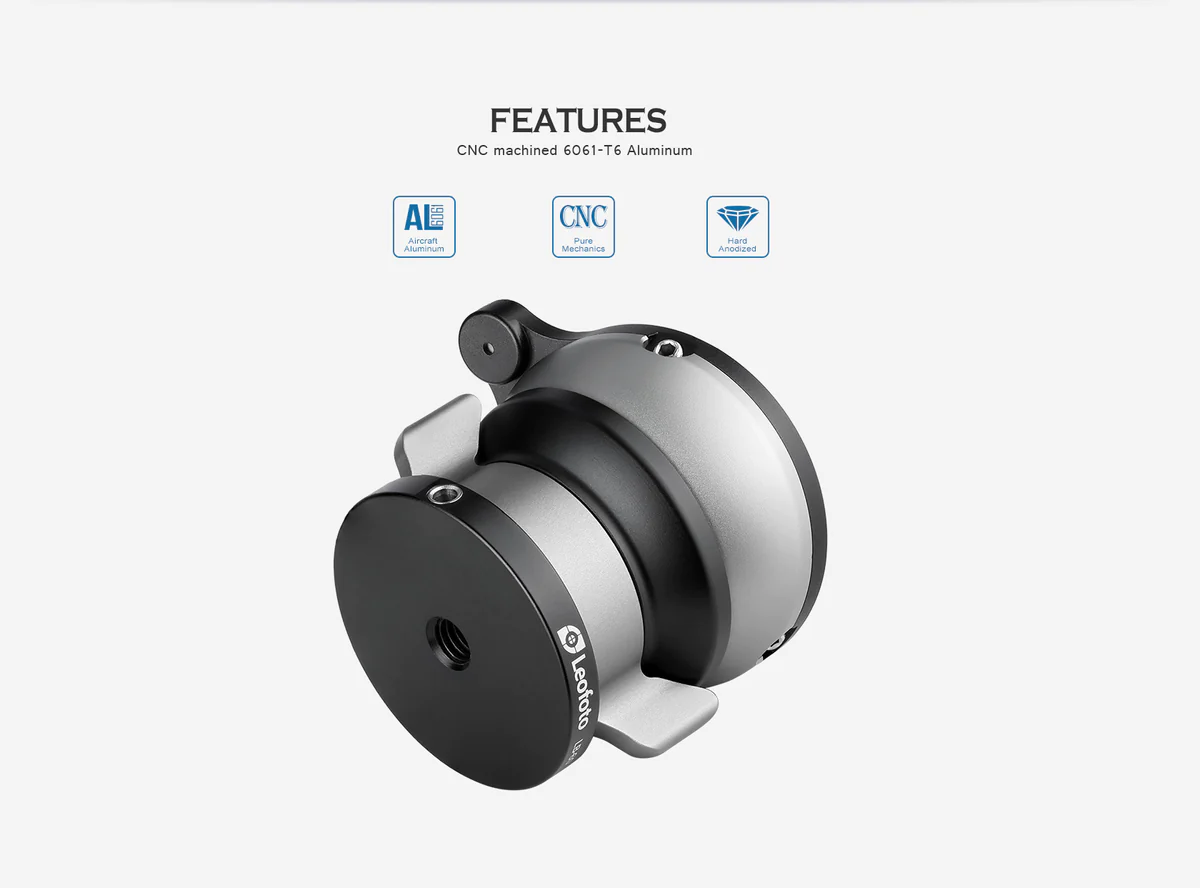

    6. CNC-Machined Aircraft-Grade Aluminum

  • Explore

  • Description

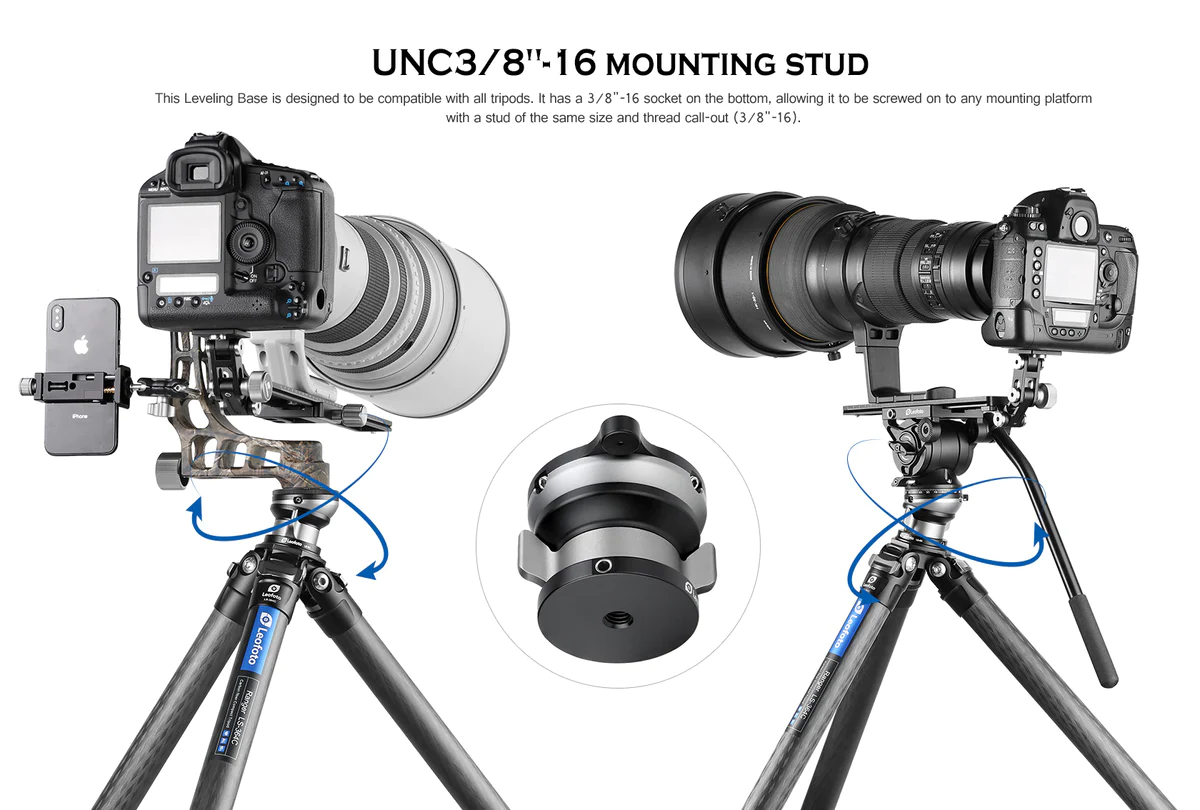

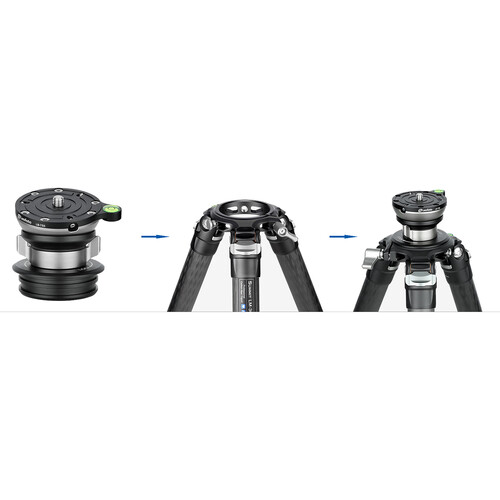

    The Leofoto LB Series Leveling Base with Butterfly Handle acts like a half ball, providing +/-15° of leveling range capability. It locks easily and securely in position with a twist of the large butterfly handle at the base of the ball. This leveling base installs on any tripod with a 3/8" mounting stud.

    • Adjustable Tilt Range: +/- 15°
    • Half-Ball Type Leveling Capability
    • 3/8"-16 Threaded Base Mounting Socket
    • 3/8"-16 Tripod Mounting Stud
    • CNC-Machined Aircraft-Grade Aluminum

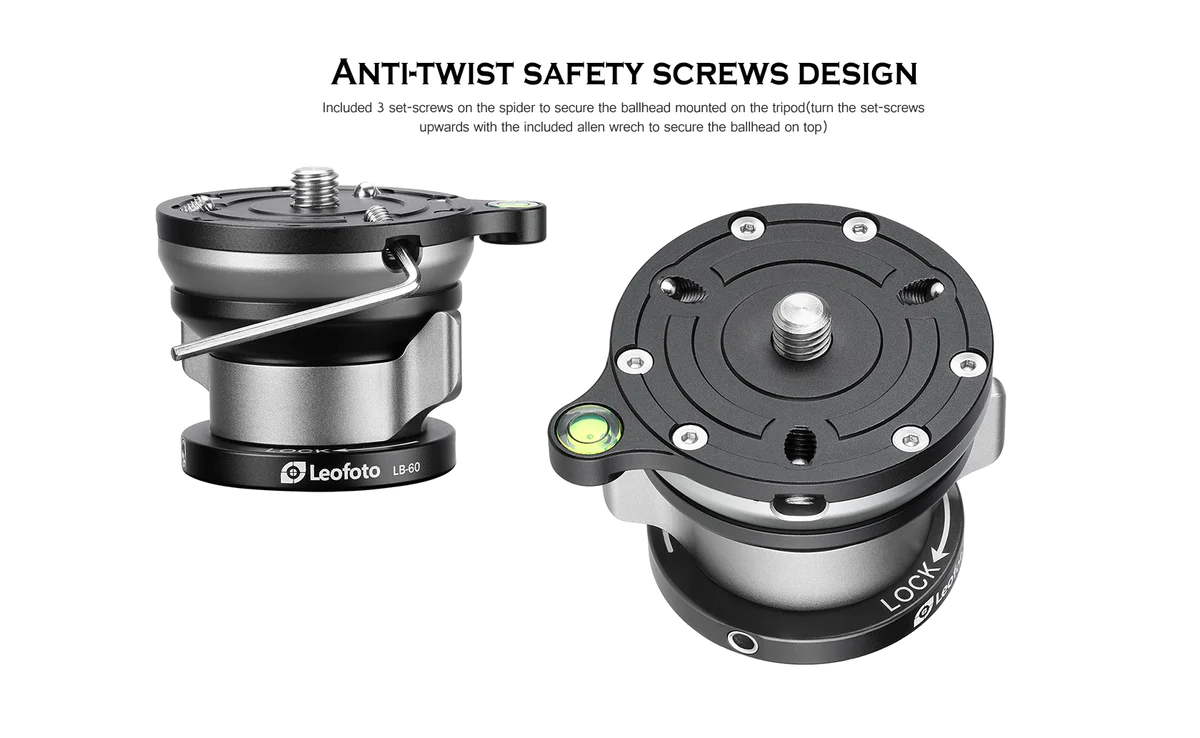

    The anti-twist safety screw design uses three set screws on the platform to secure the ball head in place on top of the leveling base.

    LB-75S (Leveling Base with Adapter for 75mm Tripod Bowls):

    Top diameter: 81mm/ 3.18in

    Base diameter: 81mm/ 3.18in

    Height: 77mm/ 3.03in

    Max load: 25kg/ 55lb

    Weight: 346g/ 0.76lb



  • specifications

    • Load Capacity

      55.1 lb / 25 kg

    • Top Plate Diameter

      75mm

    • Level Adjustment

      +/- 15°

    • Mounting Stud

      3/8"-16

    View More Specifications
