Leofoto LHC-60 60mm Screw-Knob Clamp with Plate
By Leofoto
SKU: LHC-60
Inclusive of all taxes
- View Shipping Details
Dimensions and Weight
Unit
NOS
Manufacturer
Leofoto
Country of Origin
CHINA
Highlights
- Arca-Type Quick Release Plate Receiver
- Ergonomic Knurled Knob
- 3/8"-16 Threaded Mounting Socket
- Bubble Level
- For Use with 60mm Plates
- Precision Scale
- Anti-Twist Mounting Groove
- Compatible with QR Plate Safety Screws
Explore
Description

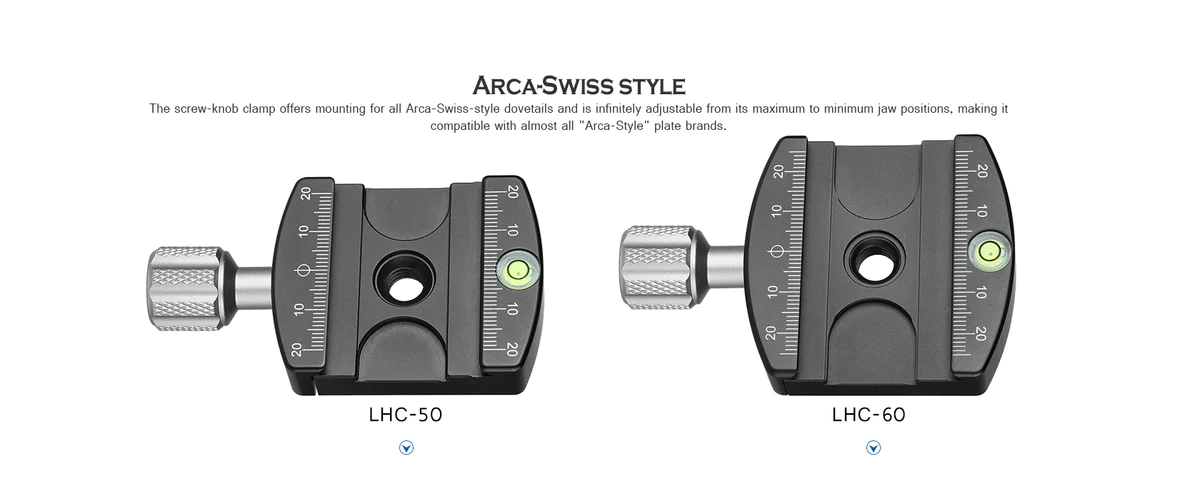

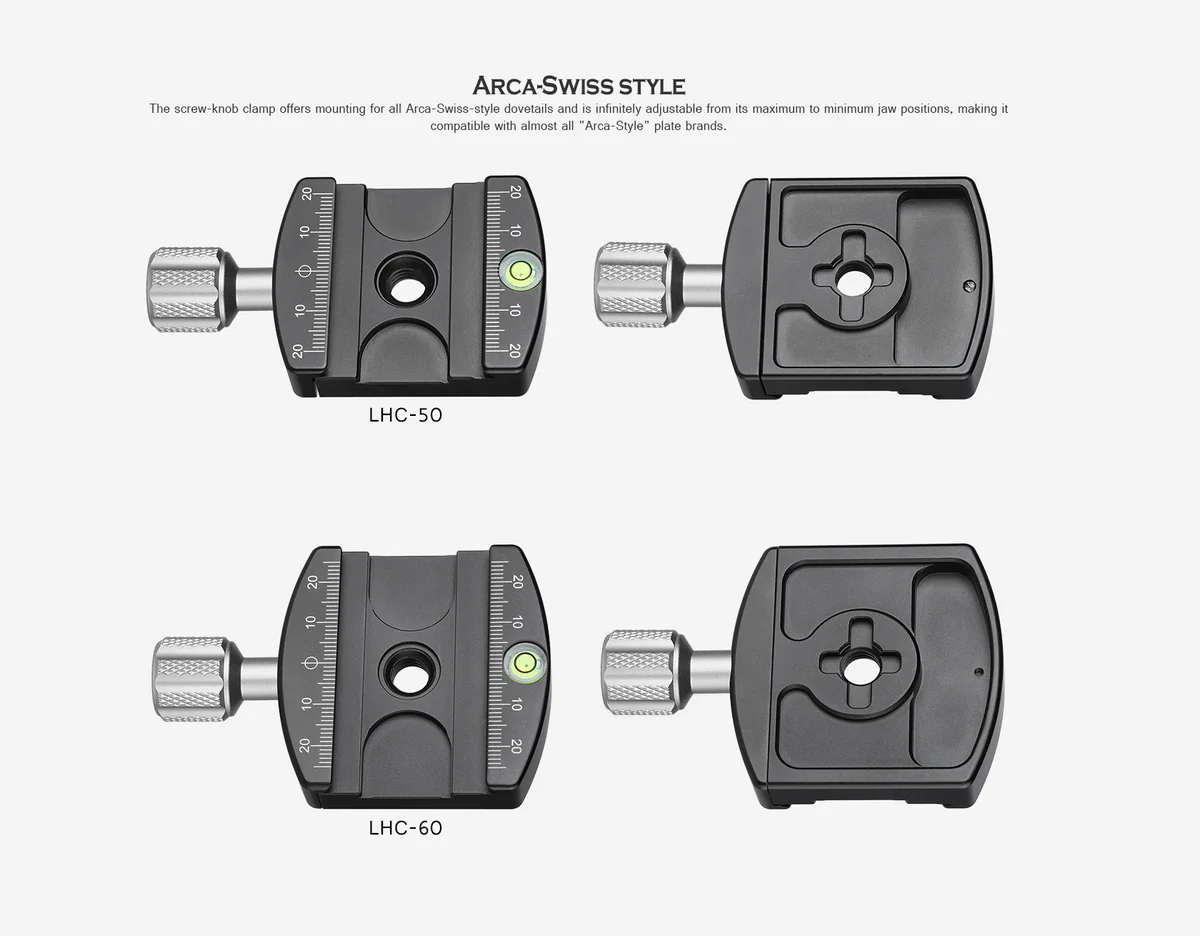

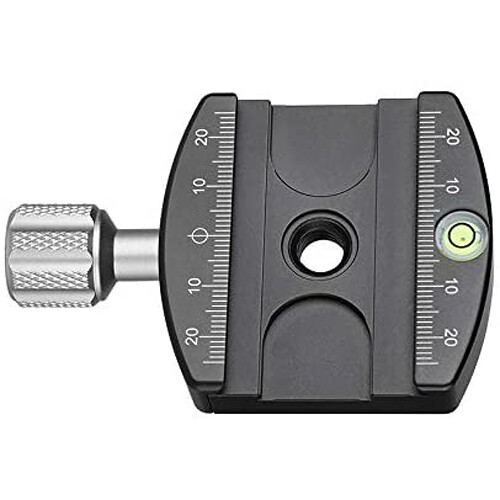

The LHC-60 60mm Screw-Knob Clamp from Leofoto is an Arca-type receiver clamp, with 60mm long jaws, made to convert existing ball heads to Arca-type quick release systems. It may also be used as a replacement part or when customizing shooting rigs. It features an integrated bubble level plus laser-engraved scale markings for precision placement of compatible quick release plates. The clamp jaws open and close by twisting the large, ergonomic knurled knob.

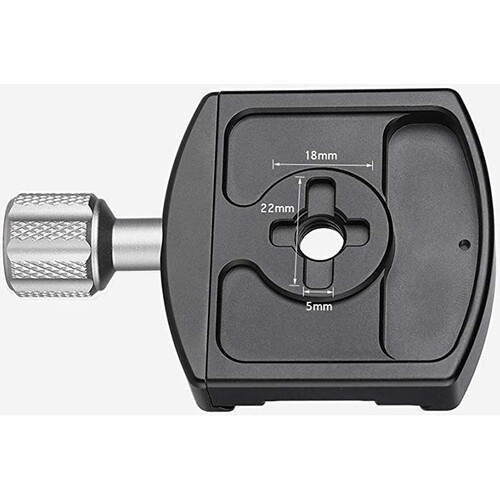

The LHC-60 60mm clamp incorporates a 3/8"-16 threaded mounting socket and an 18 x 22mm plus-shaped, 5mm-wide mounting groove to prevent it from rotating when mounted on compatible ball head stems.Leofoto LHC-60 60mm Screw-Knob Clamp With Plate:

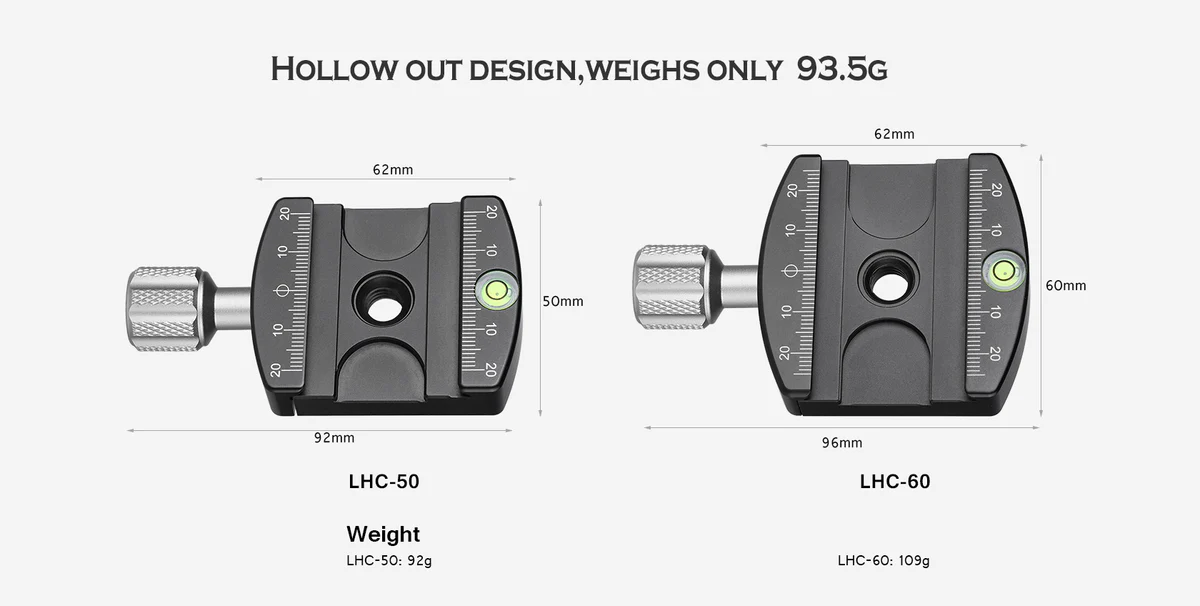

- Length (w knob): 92mm / 3.62 inches
- Length (w/o knob): 62mm / 2.44 inches
- Width: 60mm / 2.36 inches
- Mounting hole: UNC 3/8"
- Weight: 108.5g / 0.24 pounds
specifications
Slot Length
2.4" / 60.00 mm
Horizontal Offset
None
Locking Method
Screw Knob
Assembly Dimensions
L: 2.4 x W: 3.8" / L: 60.0 x W: 96.0 mm
