Leofoto MP-180S Macro Focusing Rail with Rotating Arca-Type QR System (7.1")

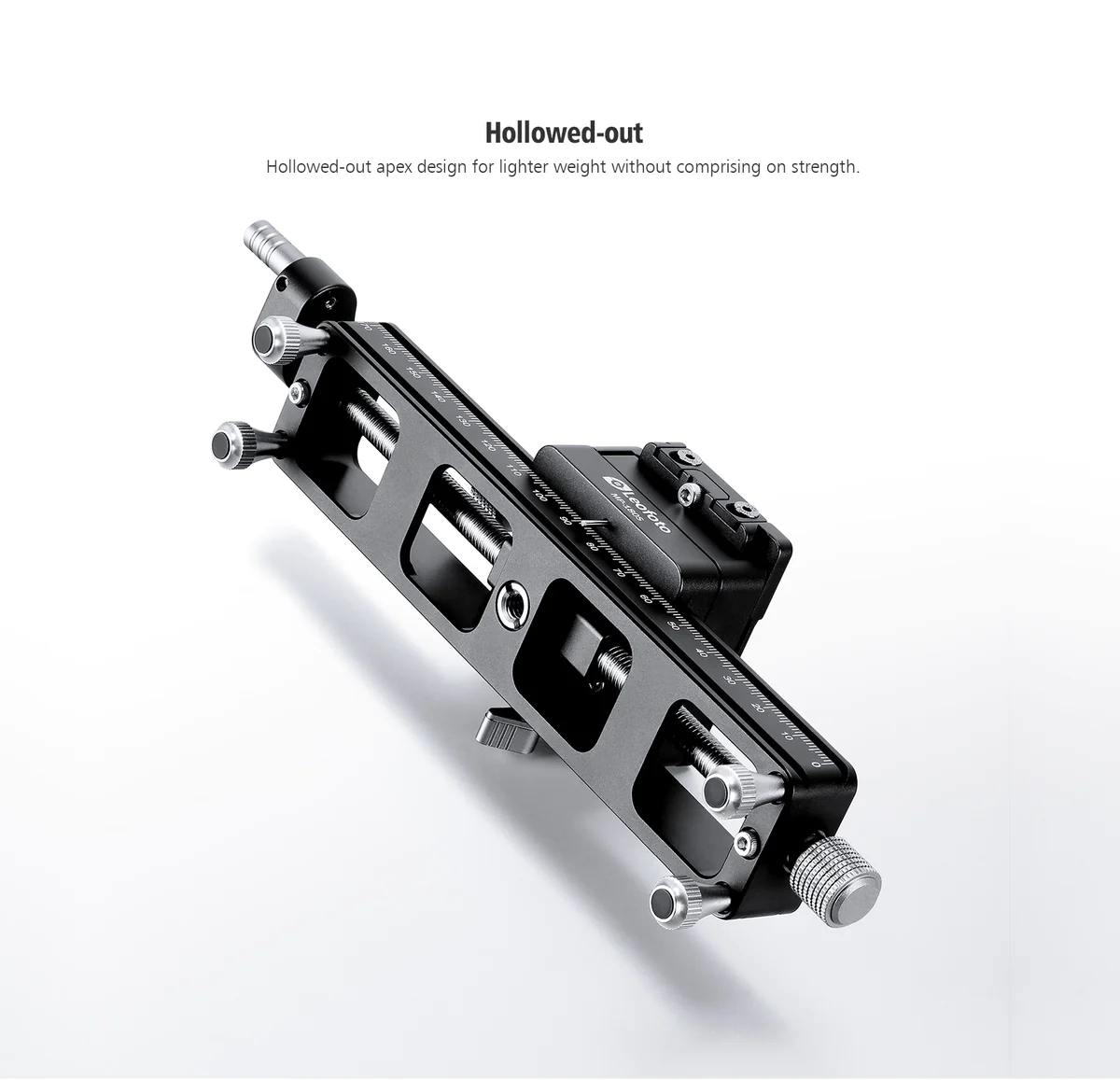

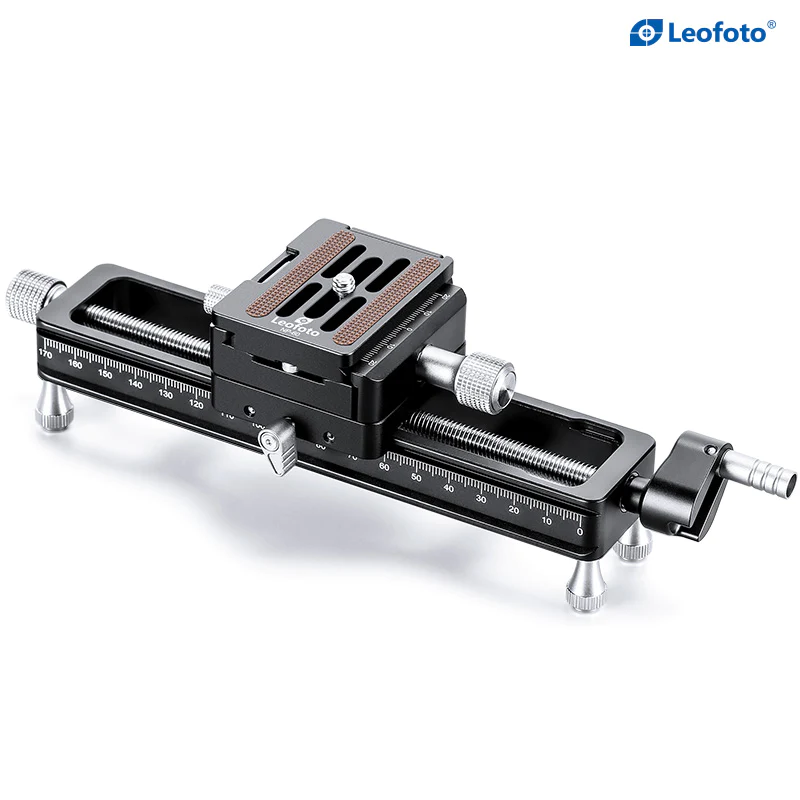

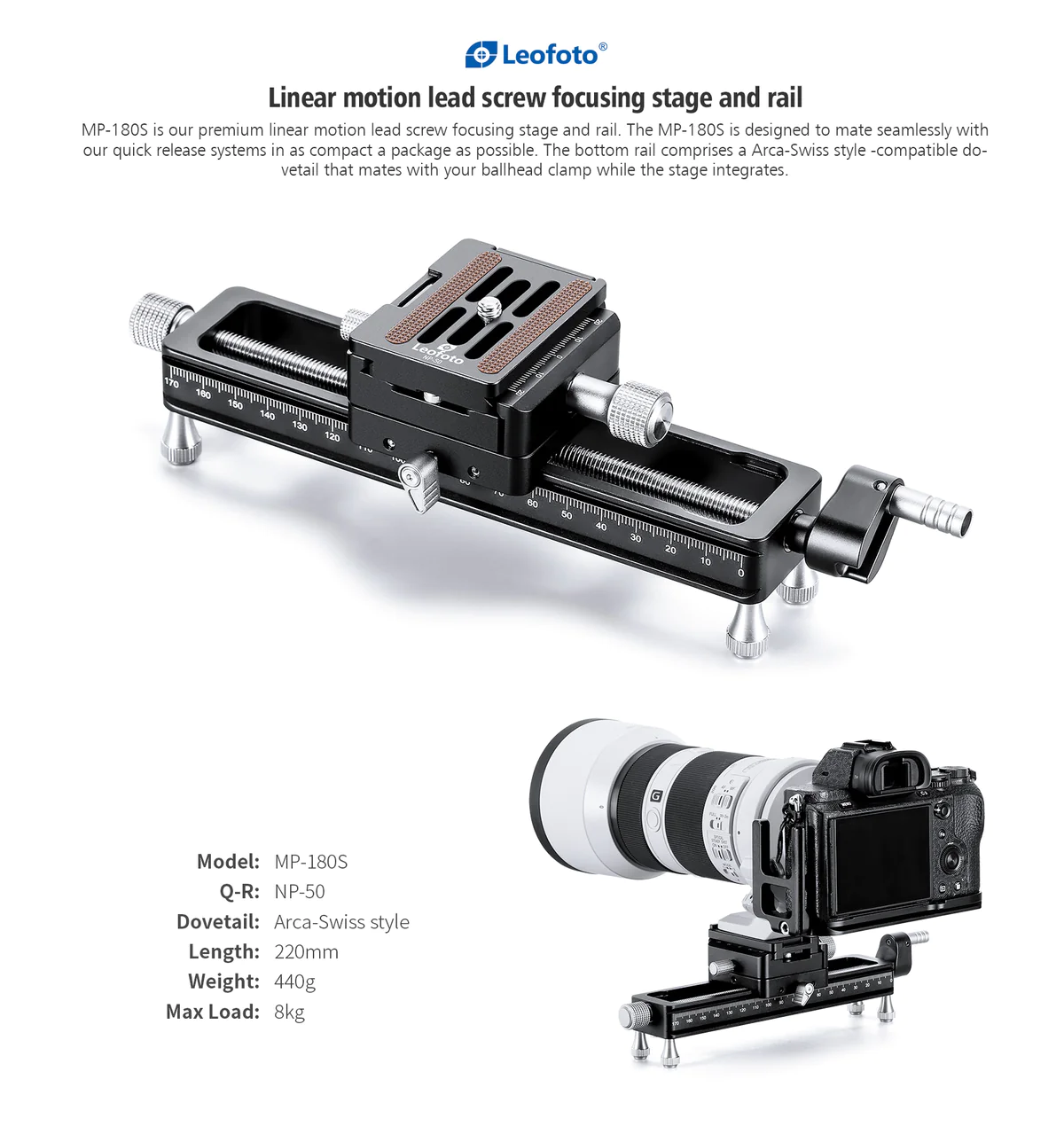

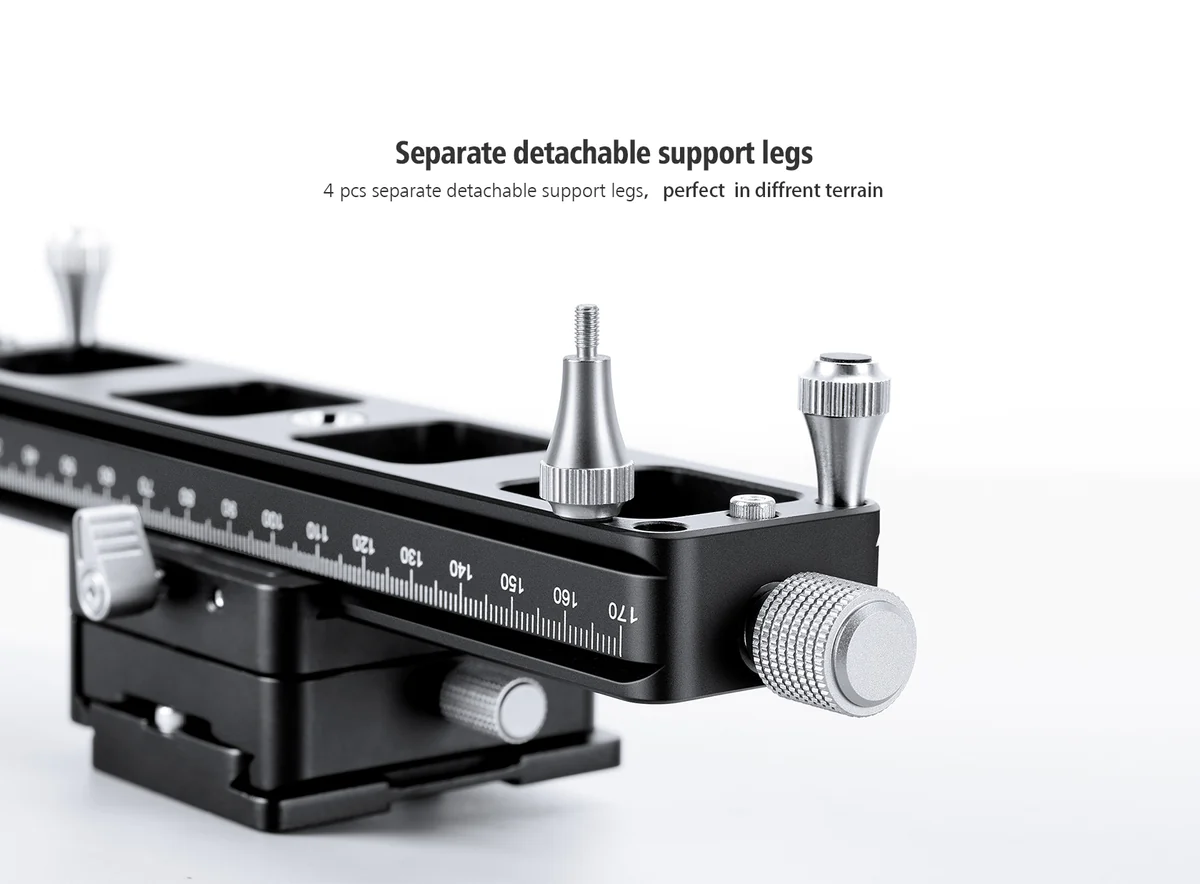

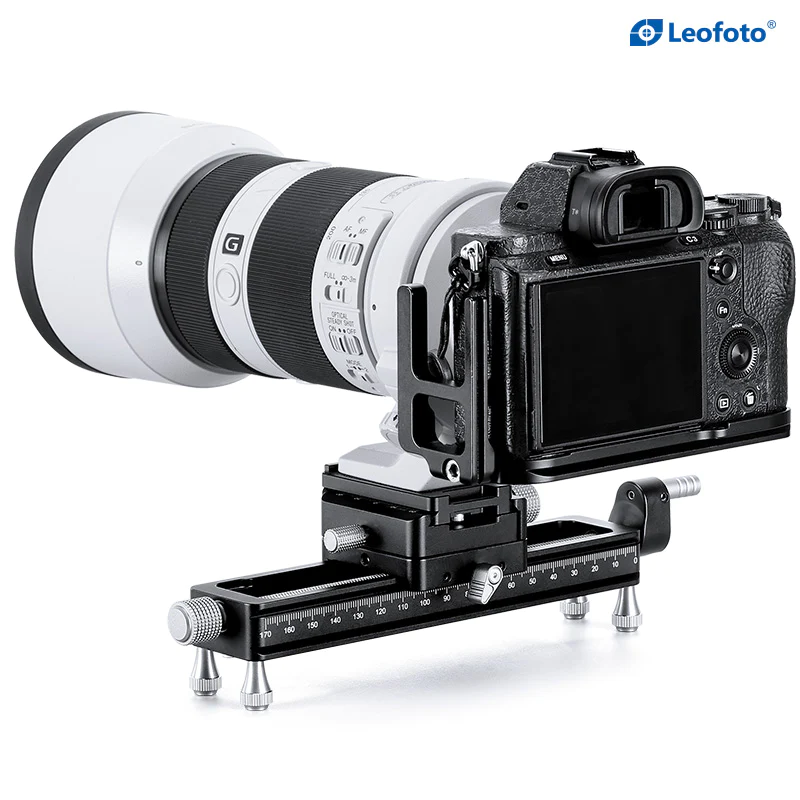

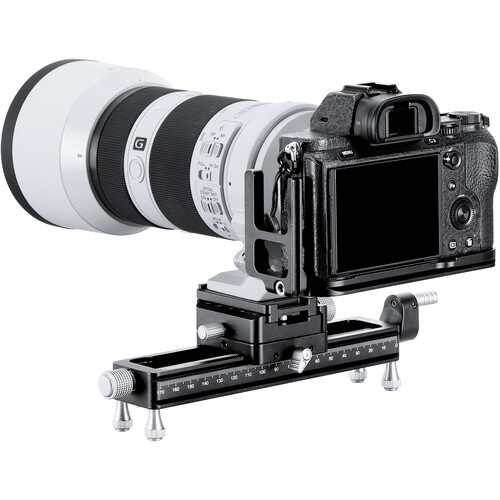

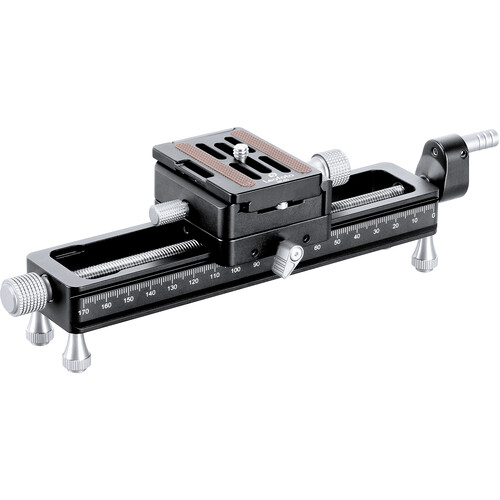

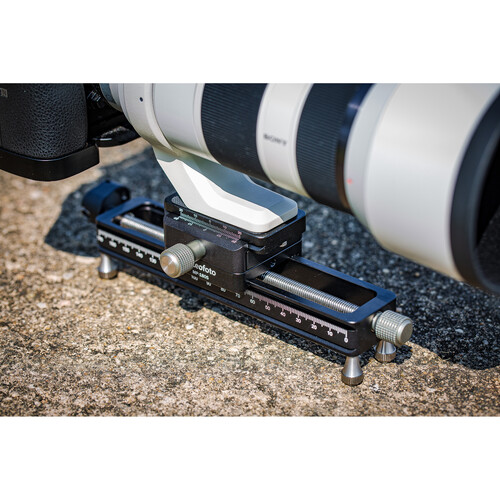

The 7.1" MP-180S Macro Focusing Rail is a precision linear motion lead screw focusing stage and rail, incorporating a camera platform with a rotating Arca-type quick release set. The rail has a capacity of 6.7" of travel distance, each full rotation of the crank providing 1.25mm of movement for precise camera positioning. The focusing knob has a crank handle that conveniently folds flat. The rail has a hollowed-out design to reduce weight, but it still maintains a robust 17.6 lb load capacity. The base of the rail features an Arca-type dovetail, making it easy to mount on compatible devices. It also has four removable, rubber-tipped feet for tabletop use.

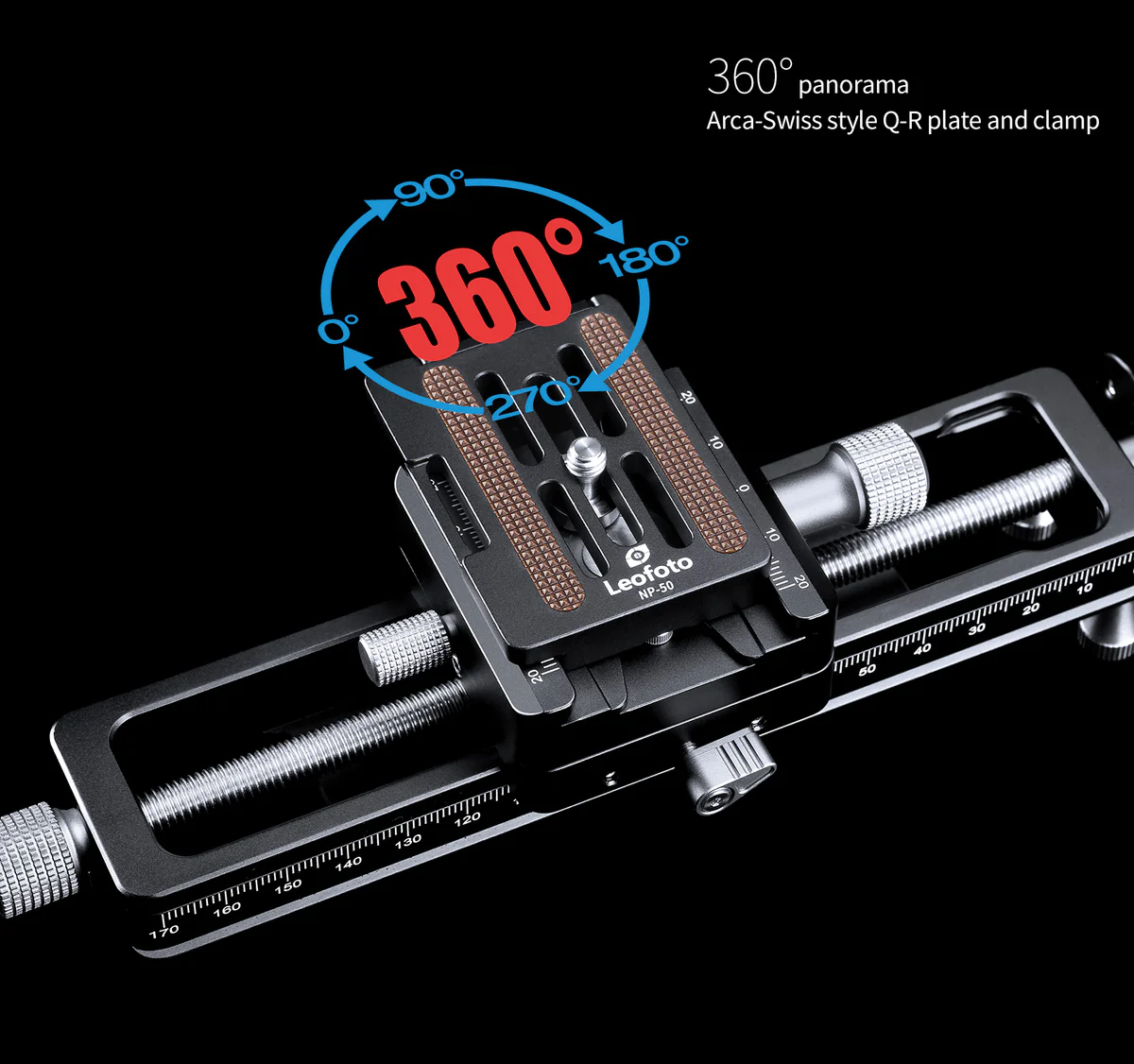

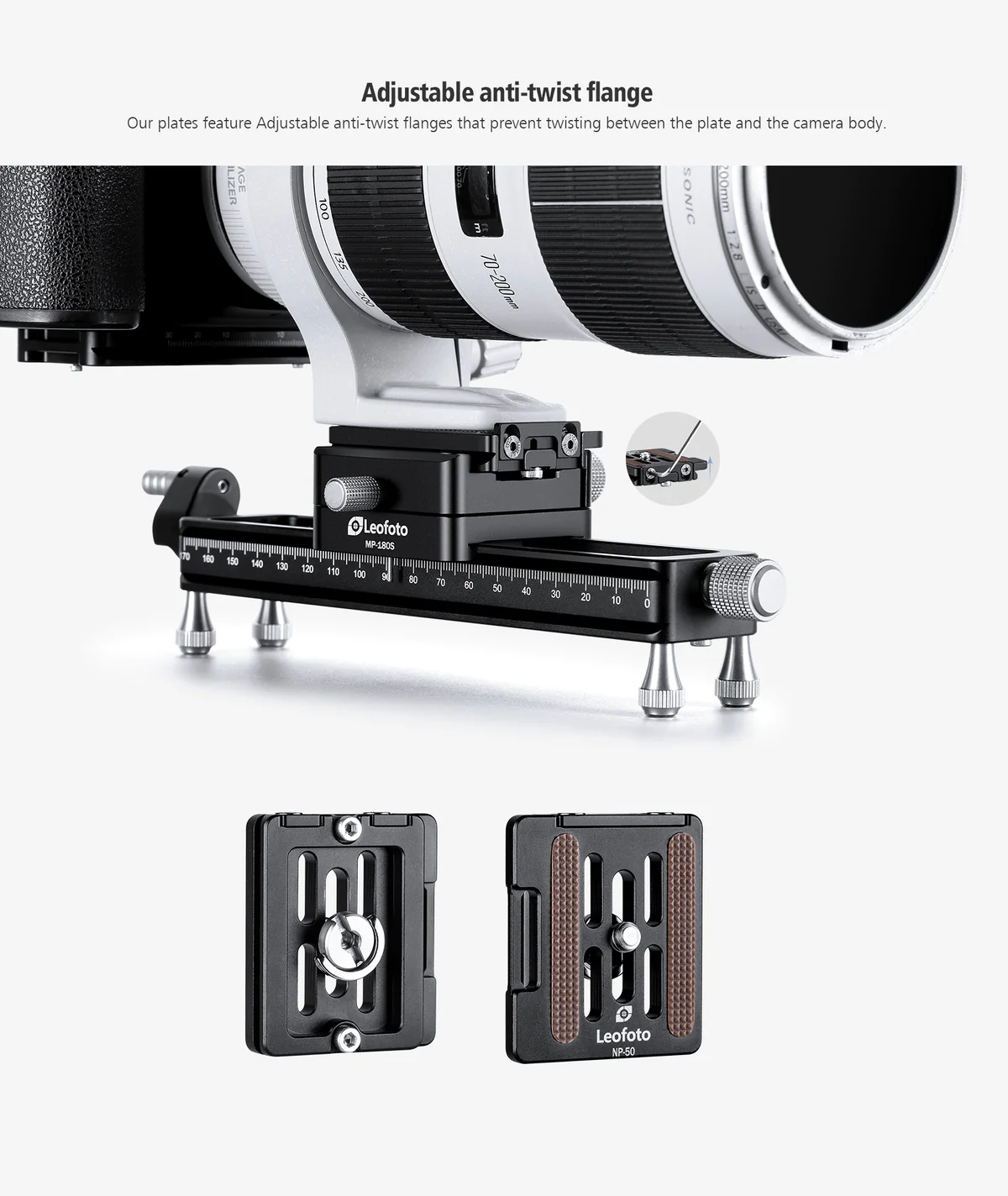

The camera platform has a locking lever and incorporates an Arca-type quick release clamp that can be quickly rotated into four positions in 90° increments. The included NP-50 quick release plate has traction pads to resist movement and an adjustable anti-twist flange to prevent unwanted movement between the plate and camera body.

Length: 220mm / 8.66 inches

Height: 48mm / 1.89 inches

Width: 54mm / 2.13 inches

Weight: 440g / 0.97 lbs

Load Capacity: 8 kg / 17.6 lb

Travel Distance: 170mm / 6.7inches

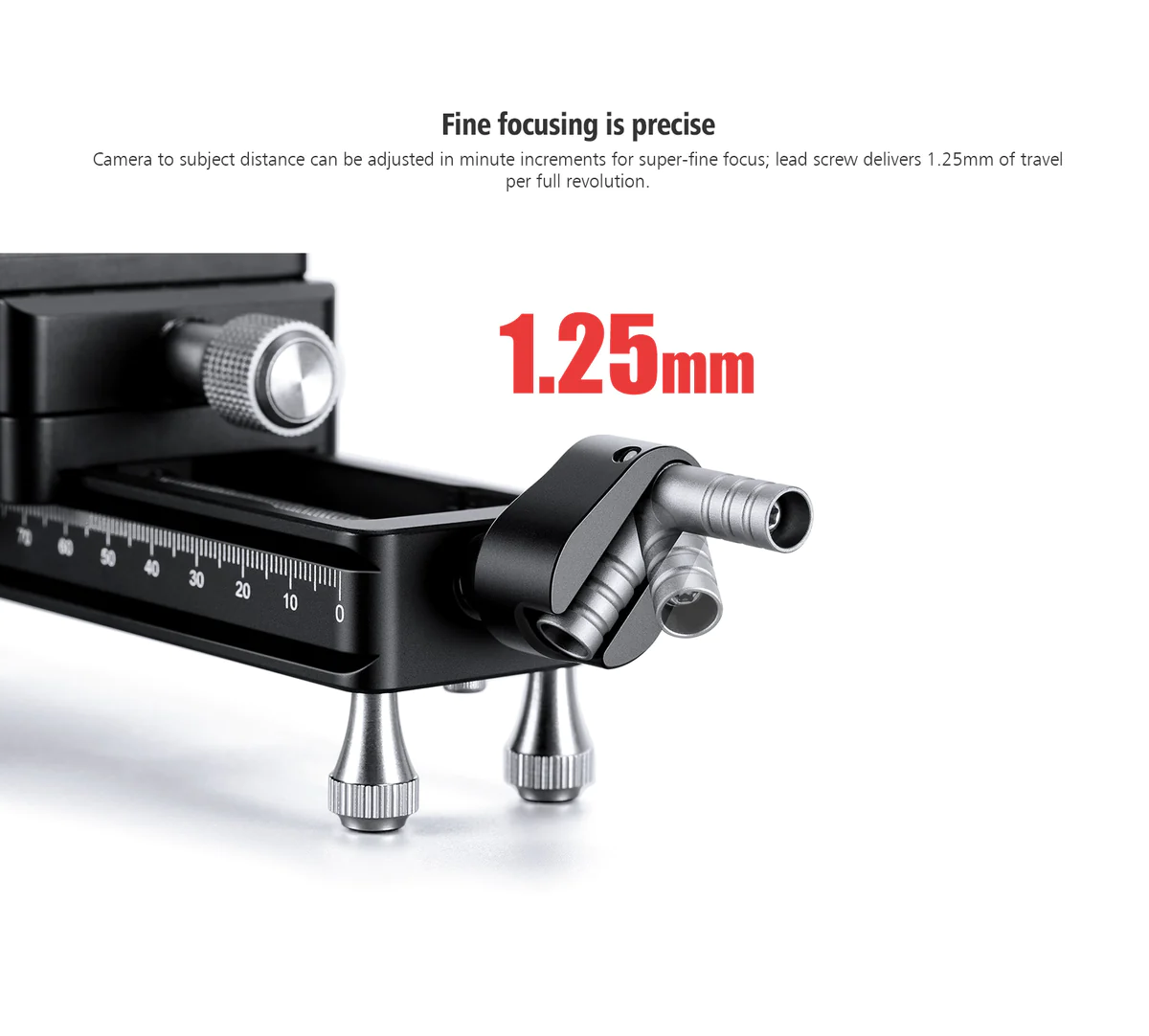

Travel per Crank Revolution: 1.25mm / 0.049 inches

Rotating Arca-Type QR Base

NP-50 QR Plate with Anti-Twist Flange

Rail Base Features Arca-Type Dovetail

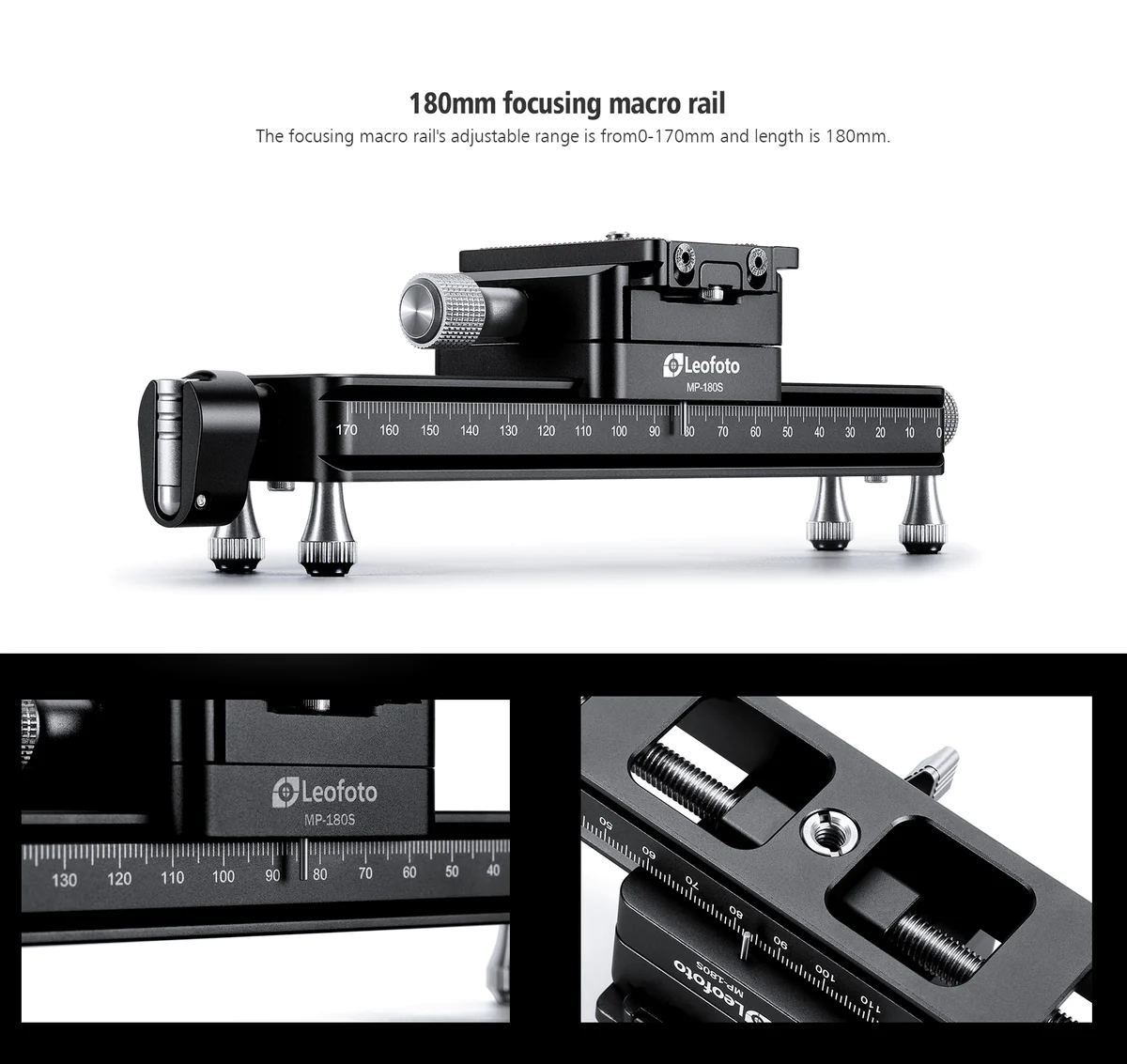

Numbered Scales for Precise Results
