SmallRig L-Bracket for Nikon Z 9 3714

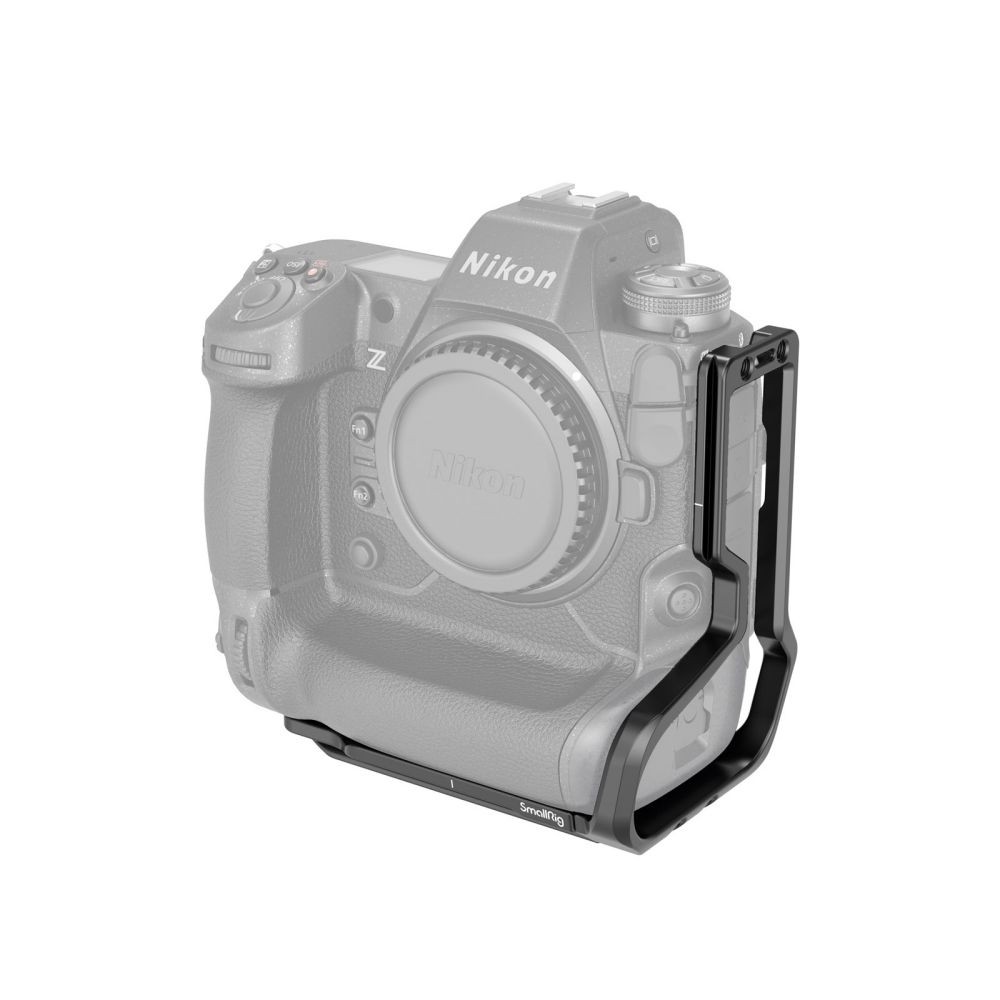

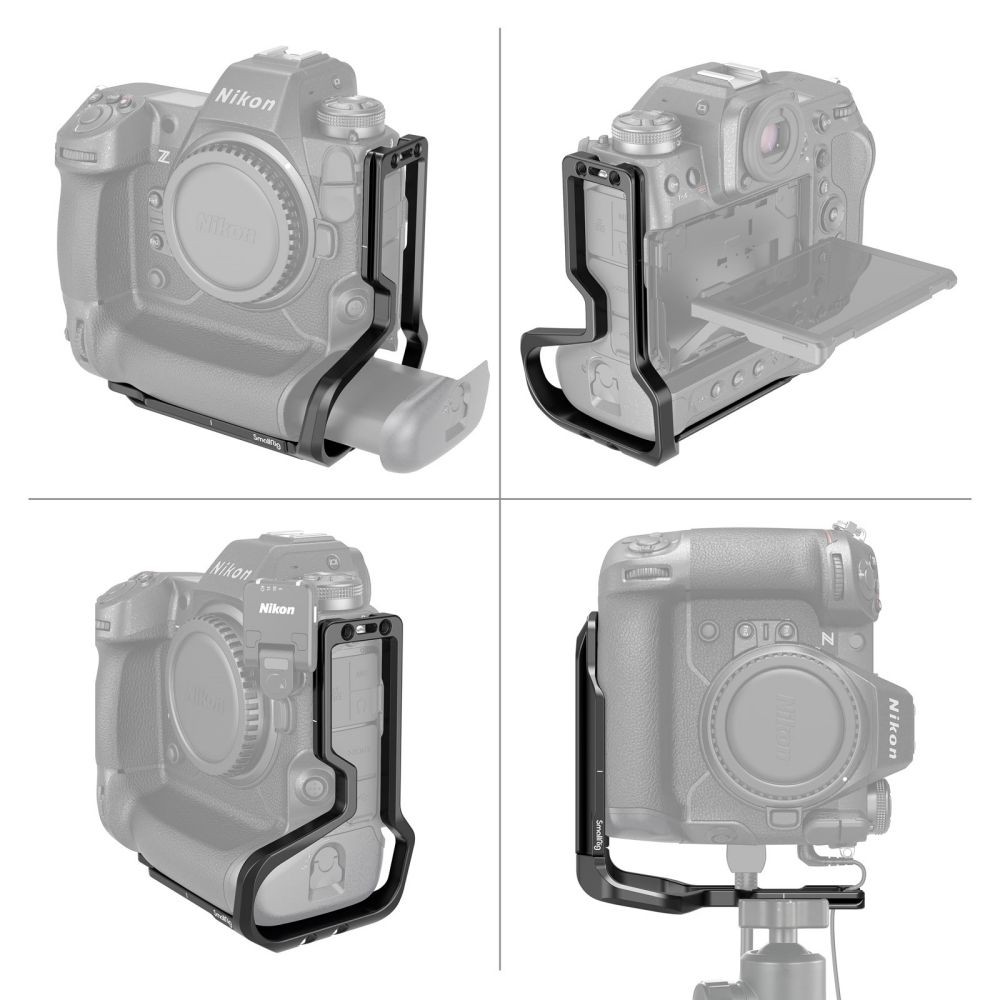

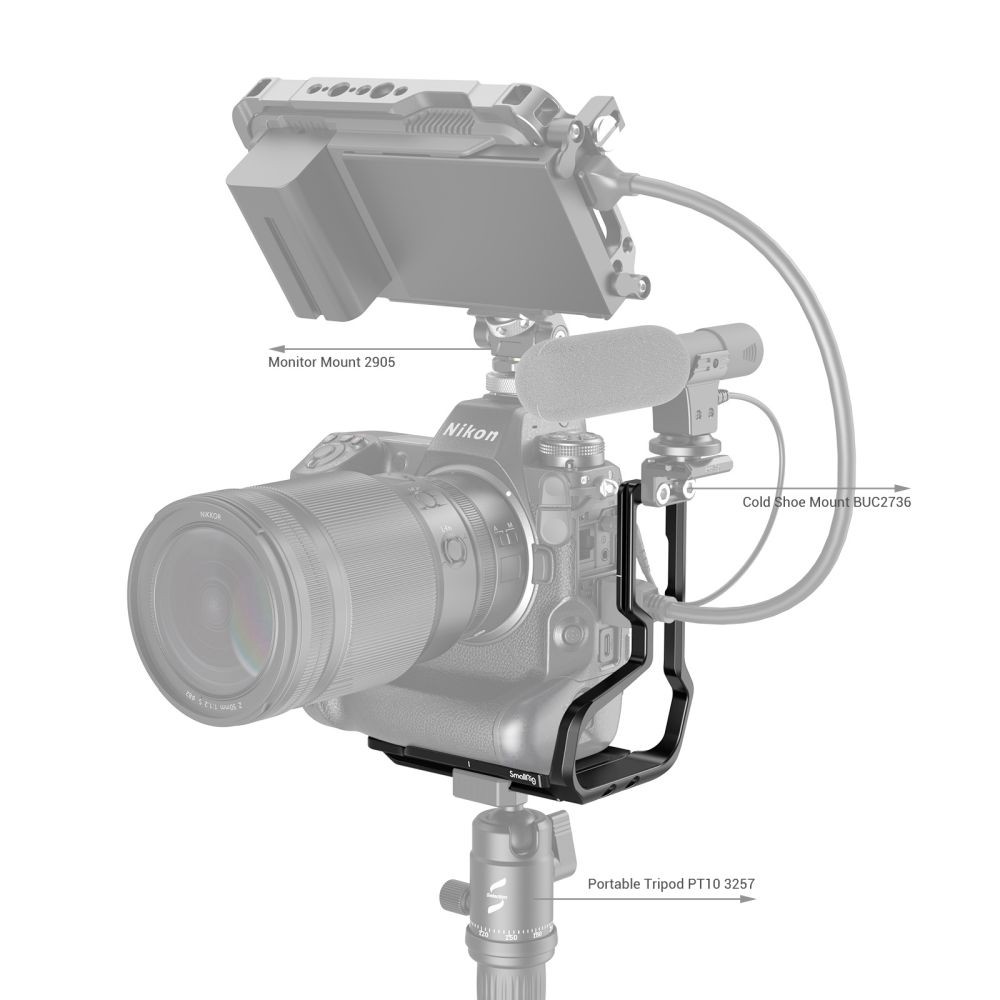

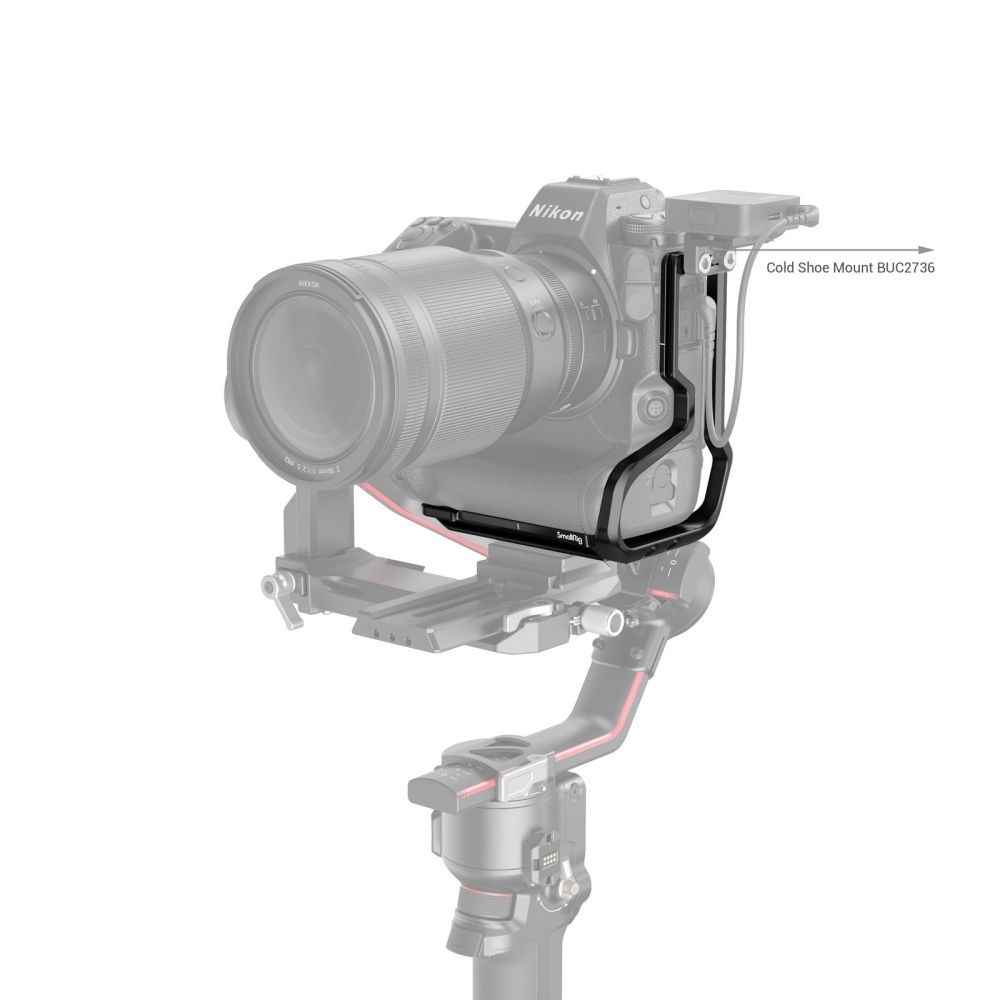

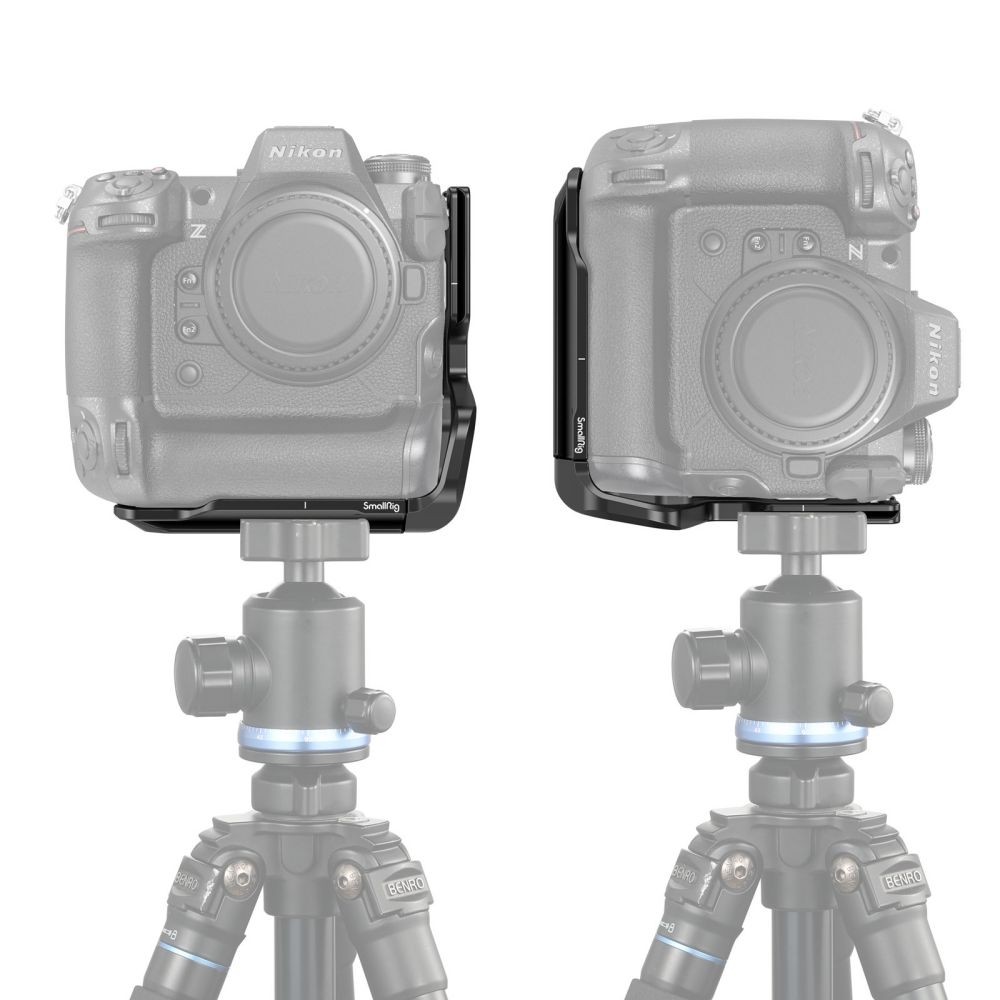

SmallRig L-Bracket for Nikon Z 9 3714 is designed for a quick switch between horizontal and vertical shooting. It is locked into the bottom of a camera via a 1/4"-20 screw and an anti-twist screw, fitted with a silicone pad to prevent scratches and deflection, and can be disassembled into an Arca-compatible base plate (used separately) and side plate, both with lens center mark. The L-Bracket does not block ports, buttons, card slot, battery door, and 4-axis tilting LCD screen. The base plate features mounting points such as 1/4”-20, 3/8"-16 threaded holes and wrist strap support to attach Quick Release Plate 1280 and the quick-release plate (pad) of DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro stabilizers to realize quick switching multiple scenes such as tripod and stabilizer. Extendable side plate featuring two 1/4"-20 threaded holes supports Cold Shoe Mount 1593 and BUC2736 to attach microphone and leaves room for HDMI and USB cables. In addition, a slotted screwdriver is accessible for easy disassembly and assembly.

Note:

1. User manual included.

2. To stretch the L-Bracket, you need to remove an anti-twist screw with the built-in flat-head spanner.

3. Please keep the left split D-Ring upwards before attaching the L-Bracket.

Work With

Nikon Z 9

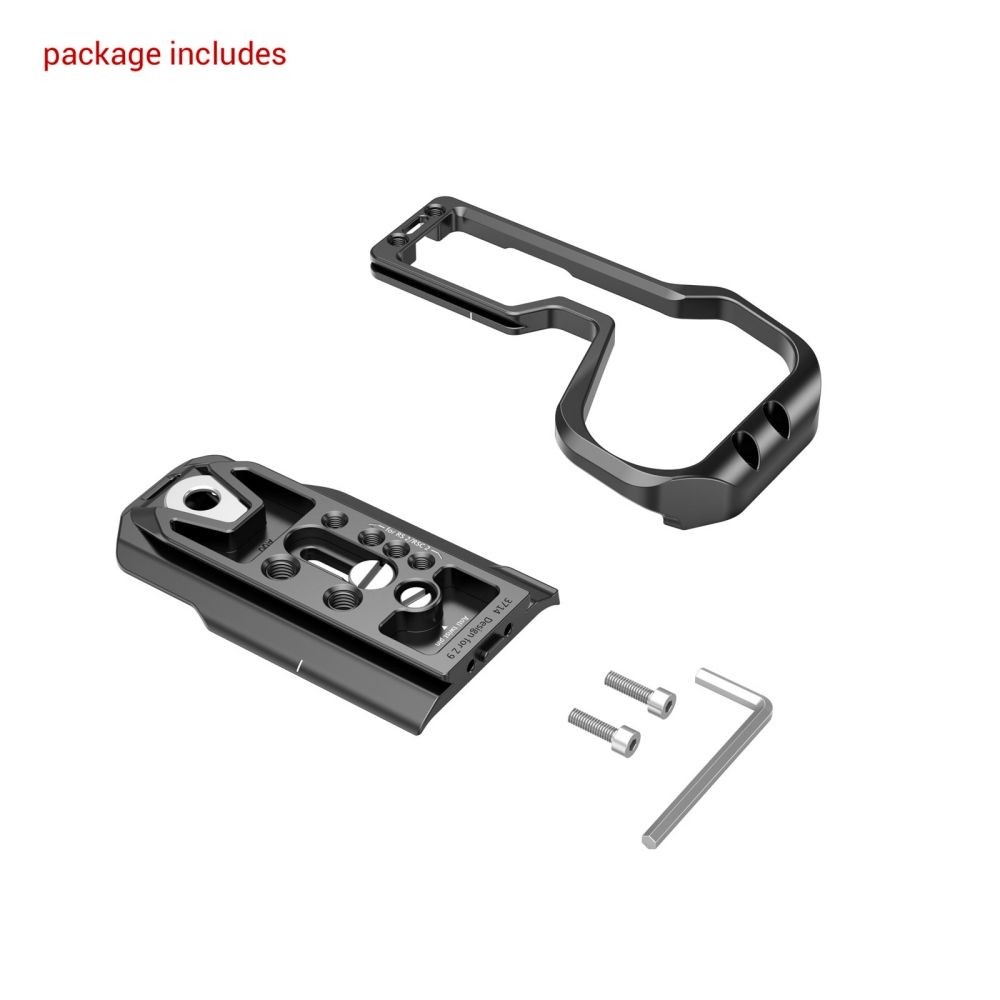

Packing List

1 x base plate

1 x side plate

2 x M4 screws

1 x Allen Wrench

Technical Data

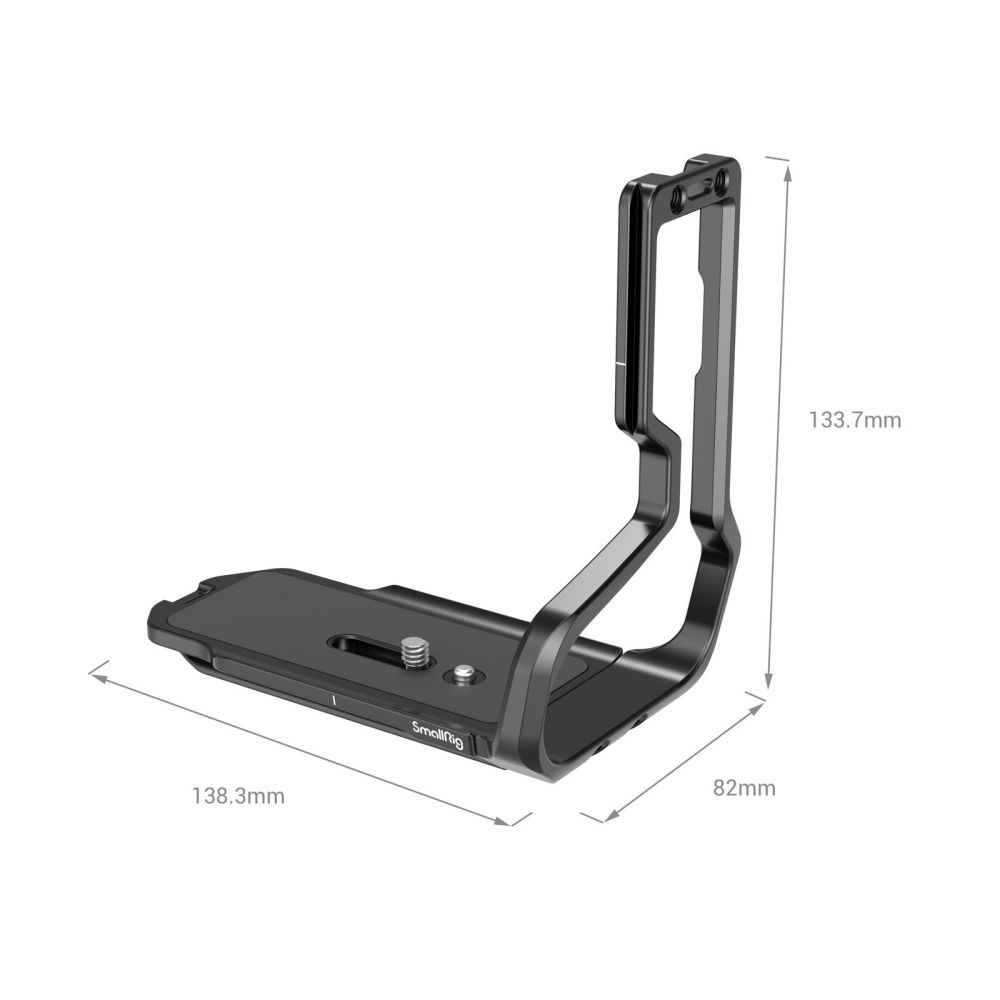

Product Dimensions: 138.3 x 133.7 x 82 mm

Package Size: 145 x 104 x 57 mm

Product Weight: 152g±5g

Package Weight: 220g±5g

Material(s): Aluminum alloy, stainless steel
