Sunwayfoto MFR-150S Macro Focusing Rail with Screw-Knob Clamp
Inclusive of all taxes
View Shipping Details
7ARTISANS200
Know more about this product
Why should I buy this?
Discover this product's exceptional qualities before buying.
Compare with other product
Comparing this product to any others that are comparable.
Get most popular reviews
Find product reviews for a better experience.
Where I can use this?
Understand the usability of the product.
| Unit | NOS |

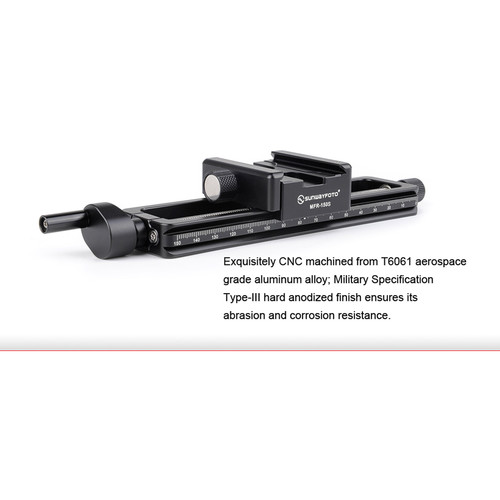

| Material of Construction | CNC machined T6061 aluminum |
| Finish | Type III black anodized |
| Adjustment Range | Lead screw: 4.2" (106 mm) Total Adjustment Range: 8.7" (220 mm) Stage Travel per Revolution: 0.05" (0.125 mm) |
| Thread Pitch | 0.5 mm (12.5 mm) |
| Load Capacity | 15.4 lb (7 kg) weight capacity varies with angle of load |

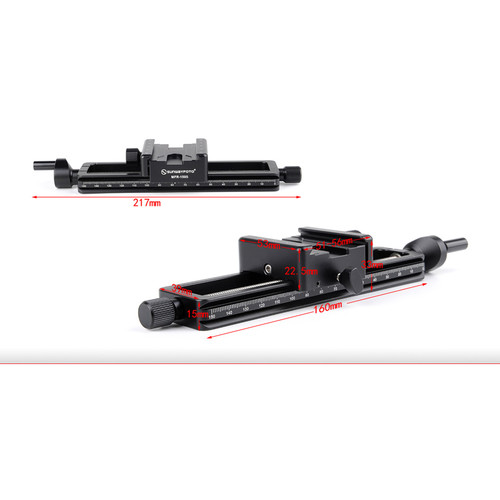

| Dimensions | 8.5 x 2.1 x 1.3" (21.6 x 5.3 x 3.3 cm) |
| Weight | 9.8 oz (279 g) |

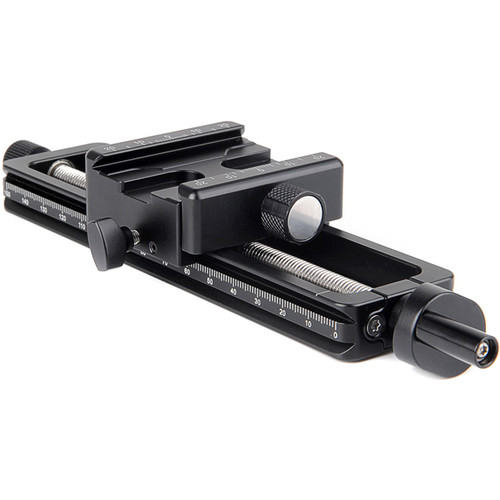

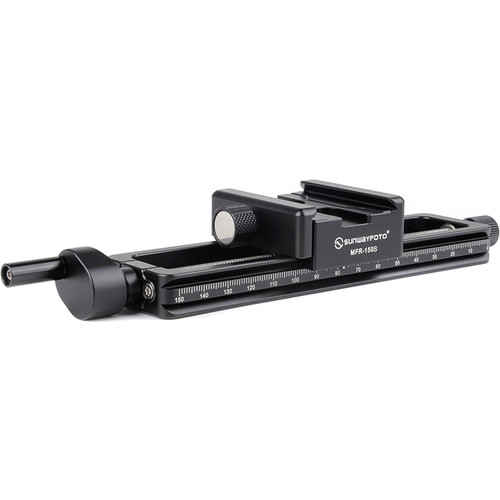

The Macro Focusing Rail with Screw-Knob Clamp from Sunwayfoto gives you the ability to precisely adjust your camera fore-or-aft when shooting macro photography. The clamp at the top is Arca-type compatible and locks down with a screw-knob. The focusing rail itself has a double-dovetail mount and will fit most Arca-type clamps on the market.

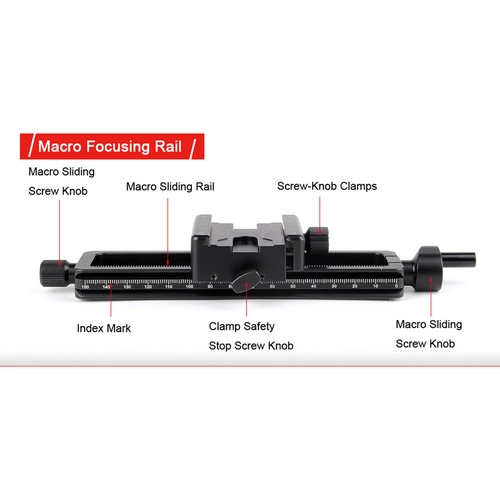

The Macro Focusing rail has both a ratchet handle, for fast and quick adjustments, and a thumb-screw knob along with engraved index marks on the side of the rail for fine adjustments. The CNC machined T6061 aluminum rail holds a maximum weight capacity of 15.4 lb, but may hold less weight once the angle of the rail is changed.

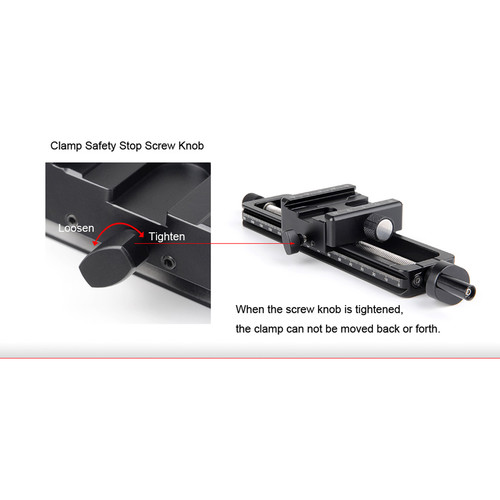

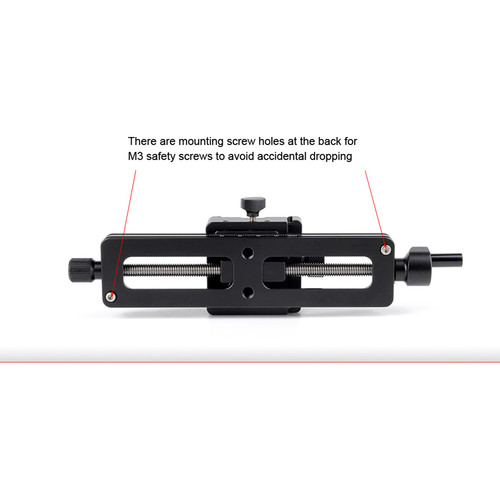

The Type III black anodized aluminum is scuff and scratch resistant and the finish is also resistant against corrosion. In addition, two focusing rails can be stacked for dual axis adjustments (fore-or-aft and lateral). Located on the bottom of the plate are two safety stop screws to prevent any accidental pulling or falling out of the rail when a clamp is partially open.
Arca-type compatible dovetail mount and screw-knob clamp
Thumb-screw knob for precise fore-or-aft adjustments
Ratchet handle for quick and fast adjustments
Type III black anodized aluminum, which is resistant against scratches, scuffs, and corrosion
CNC machined T6061 aluminum rail with two built-in safety stop screws and engraved index marks
- Arca-Type Compatible Dovetail Mount
- Screw-Knob Clamp
- Precise Fore-or-Aft Adjustment
- Type III Black Anodized
- Engraved Index Marks
- Weight Capacity: 15.4 lb
- Ratchet Handle and Thumb-Screw Knob
- CNC Machined T6061 Aluminum
