Tilta TA-T39-C-B Overview

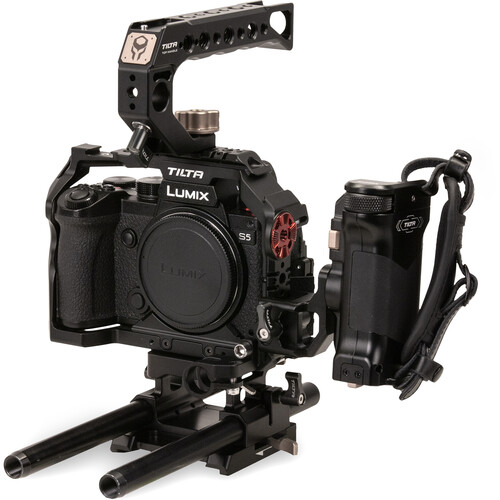

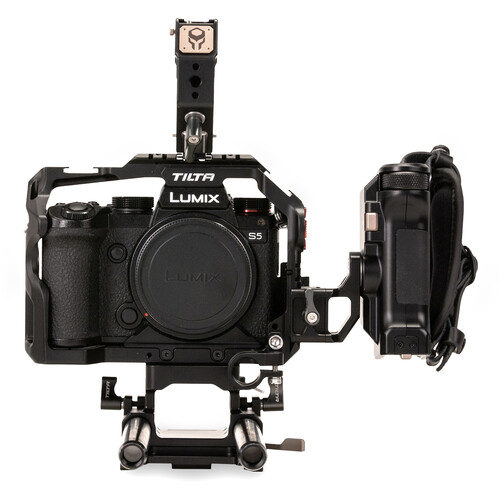

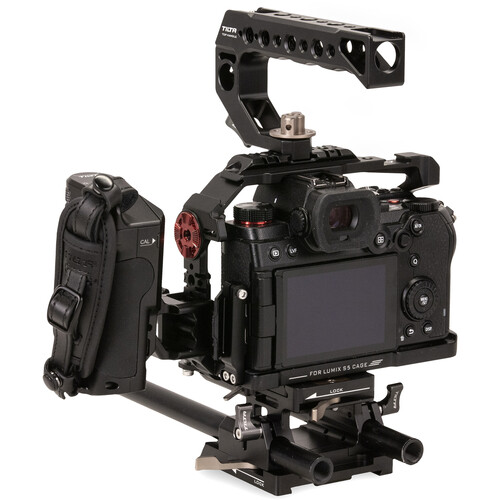

The Tilta Full Camera Cage for the Panasonic S5 offers a rosette, NATO rails, and other mount types for expanding the cage, and this Camera Cage Kit C, in black, is the most inclusive kit featuring the cage.

In addition to the cage itself, the kit includes a top handle, a focus control side handle (for Nucleus Nano motors), and a 15mm LWS baseplate that the cage attaches to by quick release. Also included are two 7.9" 15mm rods, Arca and Manfrotto quick release plates, a cable clamp, a single rod holder, an HDMI adapter cable, and a run/stop cable for triggering record start/stop from the focus handle.

Tilta Full Camera Cage for Panasonic S5 (Black)

In black, the Tilta Full Camera Cage for Panasonic S5 provides three shoe mounts while leaving the camera's hot shoe accessible. It also offers two NATO rails on top (with one of the shoe mounts between them). Plus, another NATO rail runs along the left side of the cage, and an ARRI rosette is positioned above it. Optional Tilta handles can be attached to either the NATO rail or rosette on the side.

A quick release plate is included and attaches to the bottom of the cage. This plate allows direct attachment to the Tilta 15mm LWS Baseplate Type II, sold separately. The quick release plate additionally has six 1/4"-20 tripod threads, allowing you to find the optimal balance for the cage when mounting it on gimbals and other supports. When the plate is removed, multiple 1/4"-20 threads on the bottom of the cage itself allow direct tripod/gimbal mounting.

The Full Camera Cage for Panasonic S5 also features multiple 1/4"-20 and 3/8"-16 threads with locating pins all around for attaching accessories. Also, a small magnetic flat head screwdriver is included and comes secured on the bottom of the cage. All the ports, slots, and controls of the camera remain accessible through the cage.

Tilta Quick Release Top Handle (Black)

This Tilta Quick Release Top Handle, in black, is a durable, sculpted top handle that attaches securely to a cold shoe and provides accessory mounting points, in addition to a top handle grip for your camera. The quick release handle's features include two cold shoe mounts, one in the front with a spring-loaded safety latch and the second on the back. The handle also features a 15mm rod port and multiple 1/4"-20 and 3/8"-16 threads with and without anti-twist divots.

The aluminum and stainless steel handle attaches to your camera or cage using the included spring-loaded thumbscrew. The 15mm rod port features a locking lever to secure the rod in place. On the front face of the handle, there is a 1/4"-20 threaded mounting hole with anti-twist divots. Multiple 1/4"-20 and 3/8"-16 threaded mounting holes are machined into the top and sides of the handle.

Tilta Arca-Swiss Quick Release Plate for Sony a7S III Cages (Black)

Using two included screws, the compact Arca-Swiss Quick Release Plate, in black, attaches to the bottom of Tilta full and half camera cages for the Sony a7S III. The cage can then be mounted directly on tripod heads, ball heads, and other supports that accept Arca-Swiss camera plates.

Tiltaing Manfrotto-Type Quick Release Plate Type II (Tilta Gray)

Build your Tiltaing camera rig with this Tilta Gray Tiltaing Manfrotto-Type Quick Release Plate Type II from Tilta. This plate attaches to the bottom of your compatible Tiltaing Sigma fp or Blackmagic Pocket Cinema Camera 4K/6K cage, enabling you to quickly and easily mount and remove the cage from a Manfrotto-type support system.

Tilta HDMI-01-M HDMI to Micro-HDMI Adapter

Simplify camera connectivity with the Tilta HDMI-01-M HDMI to Micro-HDMI Adapter. It plugs into the micro-HDMI port on your camera and provides a standard HDMI port to connect your standard HDMI cable to. Its universal compatibility makes it easy to slip through a camera cage to connect to and detach from your mounted camera.

Tilta Cable Clamp for Panasonic S5 Full Cage (Black)

The Tilta Cable Clamp for Panasonic S5 Full Cage, in black, attaches directly to the cage with included screws and allows you to secure your mini HDMI and USB Type-C cable connectors to prevent accidental disconnections.

Tiltaing Left-Side Advanced Focus Handle with Run/Stop (F570, Black)

Designed for Tiltaing camera cages, the Left-Side Advanced Focus Handle, in black, allows you to connect to the optional Nucleus Nano motor to control focus via a built-in finger wheel. It also features a record button for triggering record on/off over an optional Tilta R/S cable connection to compatible cameras. Multiple R/S cables are available, depending on your camera.

The handle attaches to the left side of your Tiltaing cage using your choice of an optional dedicated Left Side Handle Adapter—the Type IV, V, or VI version. Each of these attachment adapters use a different mount type, such as rosette or NATA rail.

The handle accepts a Sony F570 battery, sold separately. An included USB cable connects the handle to your Nucleus Nano motor to power it off the F570 battery and to allow finger-wheel focus control.

There are two connections on the handle: an 8V regulated USB Type-C output (where the USB cable plugs in) and 12 VDC output.

Tiltaing Advanced Left-Side Handle Adapter Type VI (Black)

The Advanced Left-Side Handle Adapter Type VI from Tilta enables you to mount a Tiltaing Left-Side Wooden Handle to the NATO rail mount on select Tilting camera cages. This black Type VI adapter is constructed of aluminum and stainless steel and comes with an Allen key.

Compatibility

• Tiltaing Left-Side Wooden Handle
• Select Tiltaing camera cages including:
• BMPCC 4K/6K/6K Pro
• Canon 5D
• FUJIFILM X-T3
• Nikon Z7
• Panasonic GH5, S1 series
• RED KOMODO
• Sharp 8K
• Sony a7/a7 III, a6300, a6400

NATO Rail Mount

Locking NATO rail mount
