Wimberley AP-551 Overview

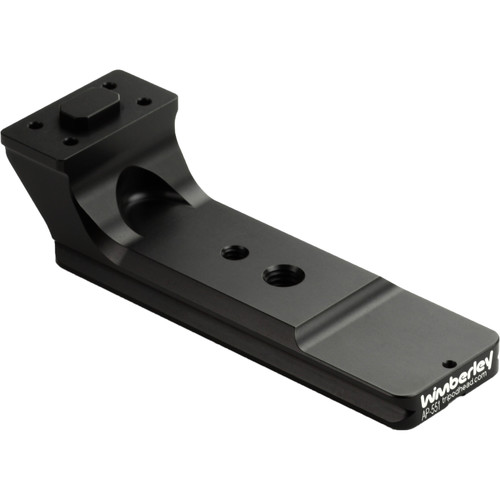

The Replacement Foot from Wimberley is a black anodized 6061 aluminum foot with an Arca-type compatible double dovetail for accessories that can attach to the top as well as to the bottom of the foot. It is designed to replace the original lens foot for the AF-S NIKKOR 200-400mm f/4G ED VR I and II lens, the AF-S NIKKOR 300mm f/2.8G ED VR I and II lens, and the AF-S NIKKOR 500mm f/4E FL ED VR lens. The lightweight and durable lens foot has a low profile that provides a lower center of gravity and a better balance than the original foot supplied with the lens.

The lower profile of the foot reduces flex and vibrations transferred to the lens. Also, 1/4"-20 and 3/8"-16 sockets have been provided for tripod heads that do not have a compatible Arca-type clamp, and dual safety stops are included to prevent accidental sliding if a clamp is partially open.

Arca-type compatible double-dovetail mount that can have accessories attach to the top and bottom of the foot

Lightweight 6061 aluminum with a durable black anodized finish

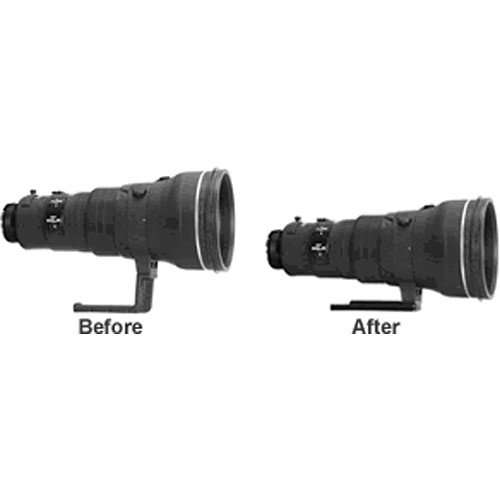

The replacement foot has a low profile, which provides the lens with a low center of gravity and helps to balance the lens. A low-profile foot also reduces flex and vibrations when the lens is in use

1/4"-20 and 3/8"-16 female sockets are provided when a tripod head does not have an Arca-type clamp

Dual safety stops are located on the bottom of the foot, which prevent accidental sliding of the lens in case the Arca-type clamp is partially open

Compatibility

AF-S NIKKOR 200-400mm f/4G ED VR I/II

AF-S NIKKOR 300mm f/2.8G ED VR I/II

AF-S NIKKOR 500mm f/4E FL ED VR
